RSS60120A Silicon Carbide Schottky Diode

Description

RSS60120A Silicon Carbide Schottky Diode .

📥 Download Datasheet

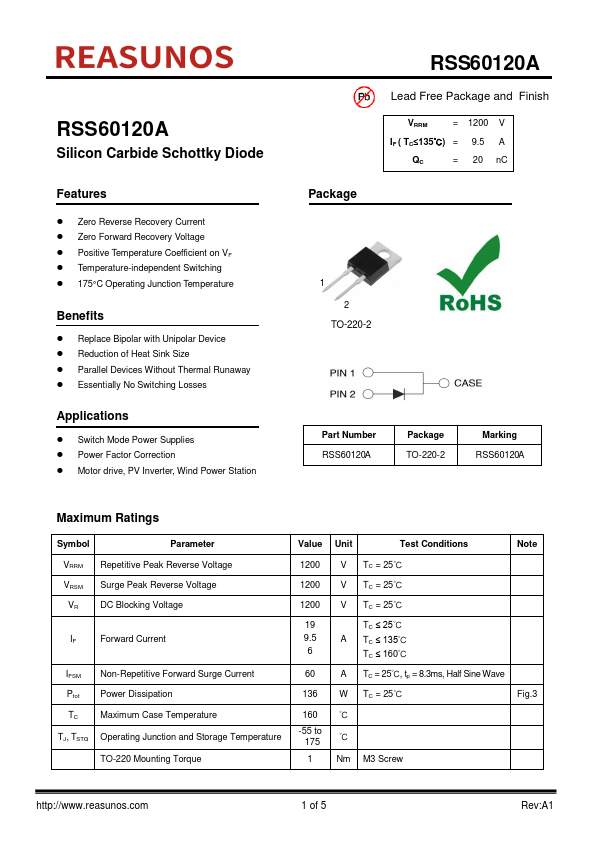

RSS60120A Datasheet Preview — Preview of RSS60120A PDF

Datasheet Specifications

Part number: RSS60120A
Manufacturer: Reasunos
File Size: 2.02 MB
Datasheet: RSS60120A-Reasunos.pdf
Description: Silicon Carbide Schottky Diode

Features

* Zero Reverse Recovery Current
* Zero Forward Recovery Voltage
* Positive Temperature Coefficient on VF
* Temperature-independent Switching
* 175°C Operating Junction Temperature Benefits
* Replace Bipolar with Unipolar Device
* Reduction of Heat Sink Size
* Parallel

Applications

* Switch Mode Power Supplies
* Power Factor Correction
* Motor drive, PV Inverter, Wind Power Station Package RSS6 0120A Lead Free Package and Finish VRRM = 1200 V IF ( TC≤135℃) = 9.5 A QC = 20 nC 1 2 TO-220-2 Part Number RSS60120A Package TO-220-2 Marking RSS60120A Maximum
