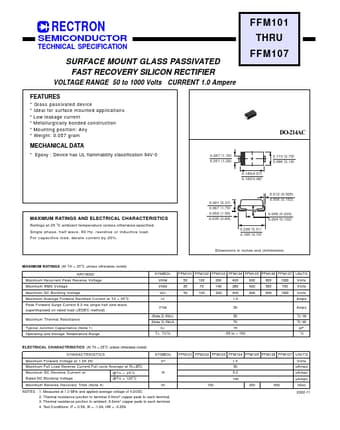

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere
FFM101 THRU
FFM107
FEATURES
* Glass passivated device * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Mounting position: Any * Weight: 0.057 gram
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
DO-214AC
0.067 (1.70) 0.051 (1.29)
0.180(4.57) 0.160(4.06)
0.110 (2.79) 0.086 (2.18)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
0.091 (2.31) 0.067 (1.70) 0.059 (1.50) 0.035 (0.89)
0.
