FFM102W - FAST RECOVERY SILICON RECTIFIER

This page provides the datasheet information for the FFM102W, a member of the FFM101W FAST RECOVERY SILICON RECTIFIER family.

Datasheet Summary

Features

  • Ideal for surface mounted.

📥 Download Datasheet

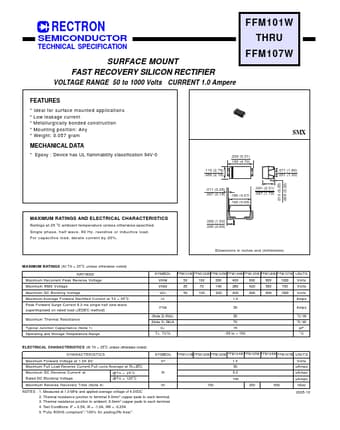

Datasheet preview – FFM102W

Datasheet Details

Part number FFM102W
Manufacturer RectrON Semiconductor
File Size 25.88 KB
Description FAST RECOVERY SILICON RECTIFIER
Datasheet download datasheet FFM102W Datasheet
Additional preview pages of the FFM102W datasheet.

📁 Similar Datasheet

  • FFM102 - 1A Surface Mount Glass Passivated Fast recovery Rectifiers (LRC)
  • FFM102 - Chip Fast Recovery Rectifiers (Formosa MS)
  • FFM102 - SUFACE MOUNT FAST RECOVERY RECTIFIER (Sunmate)
  • FFM102 - SUFACE MOUNT FAST RECOVERY RECTIFIER (JCST)
  • FFM102 - 1.0A Surface Mount Fast Recovery Rectifiers (TGS)
  • FFM102 - SURFACE MOUNT FAST RECOVERY RECTIFIER (KD)
  • FFM102 - SURFACE MOUNT FAST RECOVERY RECTIFIER (TAYCHIPST)
  • FFM102 - FAST RECOVERY SILICON RECTIFIER (WILLAS)
  • FFM102-L - 1.0A SUFRACE MOUNT FAST RECOVERY RECTIFIERS (WILLAS)
  • FFM102-M - 1.0A Surface Mount Fast Recovery Rectifiers (Crownpo Technology)
Other Datasheets by Rectron Semiconductor
  • FFM102 - FAST RECOVERY SILICON RECTIFIER
  • FFM101 - FAST RECOVERY SILICON RECTIFIER
  • FFM101W - FAST RECOVERY SILICON RECTIFIER
  • FFM103 - FAST RECOVERY SILICON RECTIFIER
  • FFM103W - FAST RECOVERY SILICON RECTIFIER
  • FFM104 - FAST RECOVERY SILICON RECTIFIER
  • FFM104W - FAST RECOVERY SILICON RECTIFIER
  • FFM105 - FAST RECOVERY SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text
RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION SURFACE MOUNT FAST RECOVERY SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere FFM101W THRU FFM107W FEATURES * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Mounting position: Any * Weight: 0.057 gram MECHANICAL DATA * Epoxy : Device has UL flammability classification 94V-0 SMX .110 (2.79) .086 (2.18) .209 (5.31) .185 (4.70) .071 (1.80) .051 (1.30) .010 (0.25) .008 (0.20) .011 (0.28) .007 (0.18) .180 (4.57) .160 (4.06) .091 (2.31) .067 (1.70) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. .
