FM3100BF, FM320BF Datasheet - Rectron Semiconductor

FM3100BF, FM320BF, SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER .
1 Cathode 2 Anode 12 Simplified outline SMBF and symbol Parameter Symbols FM320BF FM340BF FM360BF FM380BF FM3100BF FM3120BF FM3150BF FM3200BF Units.

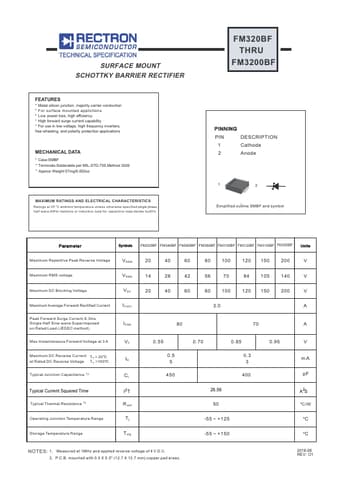

datasheet Preview Page 1 from Datasheet4u.com

FM320BF-RectronSemiconductor.pdf

FM3100BF Datasheet Preview — This datasheet PDF includes multiple part numbers: FM3100BF, FM320BF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FM3100BF, FM320BF

Manufacturer:

RectrON Semiconductor ↗

File Size:

102.99 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: FM3100BF, FM320BF.
Please refer to the document for exact specifications by model.

Features

* Metal silicon junction, majority carrier conduction
* For surface mounted applictions
* Low power loss, high efficiency
* High forward surge current capability

Applications

* MECHANICAL DATA
* Case:SMBF
* Terminals:Solderable per MIL-STD-750,Method 2026
* Approx Weight:57mg/0.002oz MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. single phase, half wave,60Hz resistive or inductive load,for capaciti
