* Glass passivated device Ideal for surface mounted applications Low leakage current Metallurgically bonded construction Mounting position: Any Weight: 0.057 gram DO-214AC MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 0.067 (1.70) 0
FM4001
RectrON Semiconductor ↗
23.17 KB
Glass passivated silicon rectifier(voltage range 50 to 1000 volts current 1.0 ampere).
RECTRON
SEMICONDUCTOR

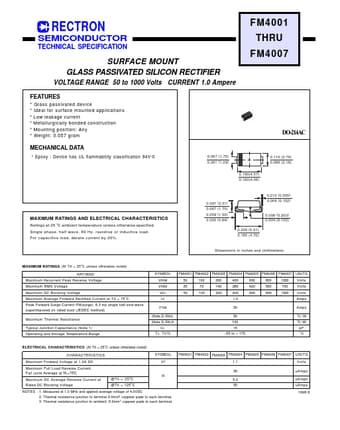

TECHNICAL SPECIFICATION
FM4001 THRU FM4007
SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CUR.
