HER3001C - HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 200 Volts CURRENT 30 Amperes)

Datasheet Summary

Features

  • Low power loss, hig efficiency Low forward voltage drop Low thermal resistance High current capability High reliability High surge capability .245 (6.2) .225 (5.7) .645 (16.0) .625 (15.9) .085 (2.16) .075 (1.90) TO-247 .135 (3.4) .115 (2.9) .203 (5.16) .193 (4.90).

📥 Download Datasheet

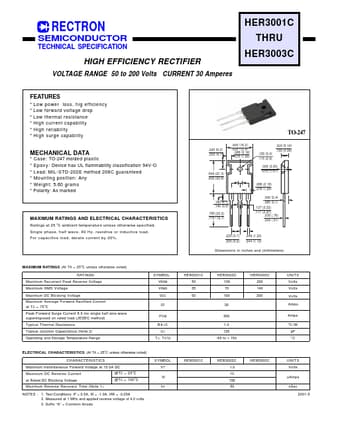

Datasheet preview – HER3001C

Datasheet Details

Part number HER3001C
Manufacturer RectrON Semiconductor
File Size 26.15 KB
Description HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 200 Volts CURRENT 30 Amperes)
Datasheet download datasheet HER3001C Datasheet
