RS2006M - SINGLE-PHASE SILICON BRIDGE RECTIFIER

RS2006M Description

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION RS2001M THRU RS2007M SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 20 A.

RS2006M Features

* Low leakage Low forward voltage Mounting position: Any Surge overload rating: 300 amperes peak Ideal for printed cikcuit boakds High forward surge current capability RS-20M .189 (4.8) 1.193 (30.3) 1.169 (29.7) .197 (5) MECHANICAL DATA
* UL listed the recogni

📥 Download Datasheet

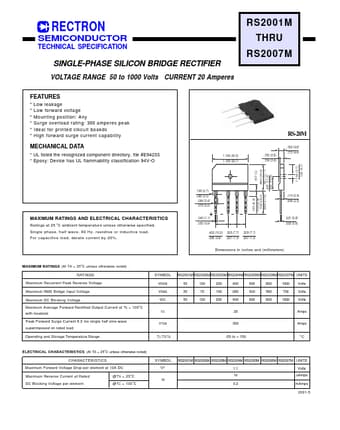

Preview of RS2006M PDF
datasheet Preview Page 2
