05A5, 05A1, SURFACE MOUNT SILICON RECTIFIER

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION SURFACE MOUNT SILICON RECTIFIER 05A1 THRU 05A7 VOLTAGE RANGE 50 to 1000 Volts CURRENT 0.5 Ampere FEATU.

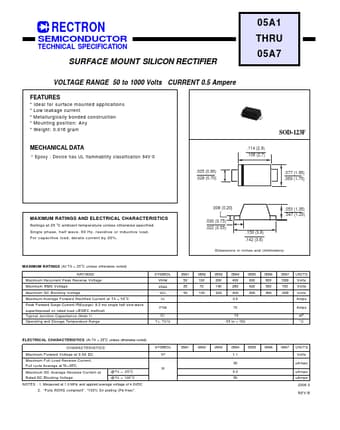

datasheet Preview Page 1 from Datasheet4u.com

05A1-Rectron.pdf

05A5 Datasheet Preview — This datasheet PDF includes multiple part numbers: 05A5, 05A1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

05A5, 05A1

Manufacturer:

Rectron

File Size:

25.08 KB

Description:

SURFACE MOUNT SILICON RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: 05A5, 05A1.
Please refer to the document for exact specifications by model.

Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* Weight: 0.016 gram MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 .035 (0.90) .028 (0.70) .114 (2.9) .106 (2.7) SOD-123F .077 (1.95) .069 (1.75) MAXIMUM RATINGS
