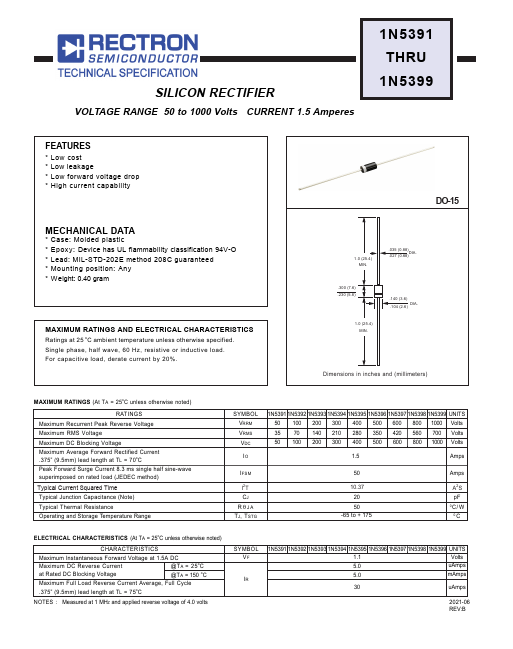

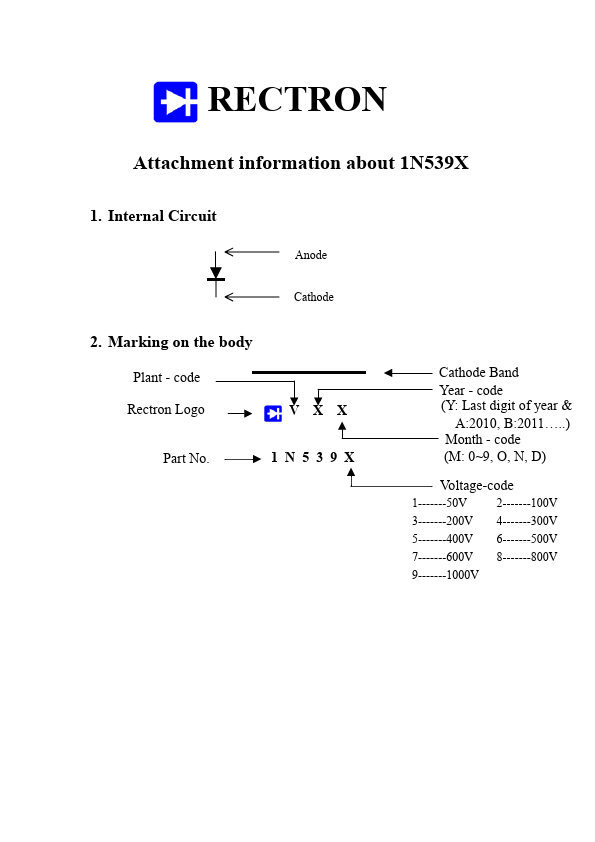

1N5391
FEATURES
- Low cost
- Low leakage
- Low forward voltage drop
- High current capability
DO-15
MECHANICAL DATA
- Case: Molded plastic
- Epoxy: Device has UL flammability classification 94V-O
- Lead: MIL-STD-202E method 208C guaranteed
- Mounting position: Any
- Weight: 0.40 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
1.0 (25.4) MIN.
.035 (0.88) .027 (0.68)DIA.
.300 (7.6) .230 (5.8)
1.0 (25.4) MIN.
.140 (3.6) .104 (2.6) DIA.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (At TA = 25o C unless otherwise noted)
RATINGS Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current .375” (9.5mm) lead length at TL = 70o C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)
Typical Current...
