1N5396, 1N5391 SILICON RECTIFIER

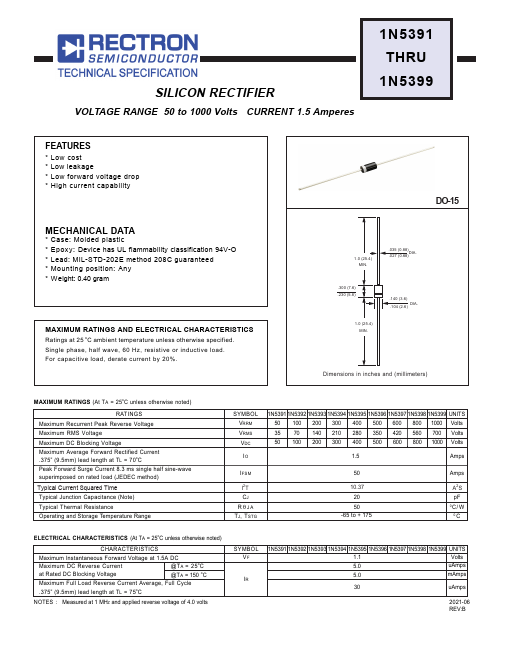

1N5396 Description

SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes 1N5391 THRU 1N5399 .
only.

1N5396 Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability DO-15 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guaranteed
* Mounting position: Any
* Weight: 0.4

1N5396 Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other application

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5396, 1N5391. Please refer to the document for exact specifications by model.

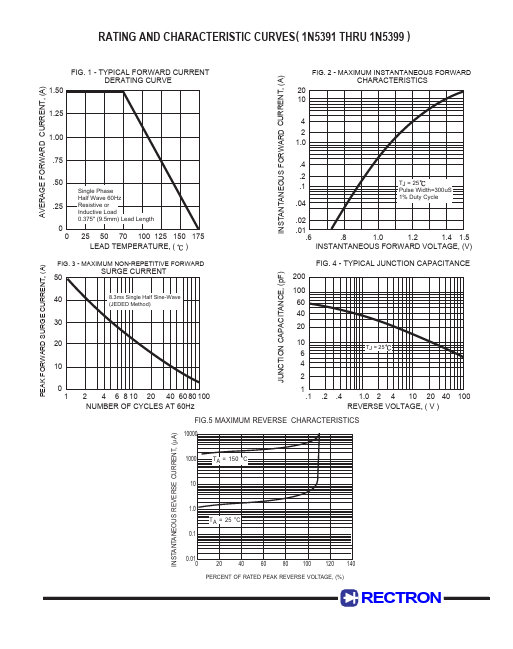

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N5396, 1N5391
Manufacturer
Rectron
File Size
699.70 KB
Datasheet
1N5391-Rectron.pdf
Description
SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N5396, 1N5391.
Please refer to the document for exact specifications by model.
