1N5397 - SILICON RECTIFIER

This page provides the datasheet information for the 1N5397, a member of the 1N5391 SILICON RECTIFIER family.

Datasheet Summary

Description

only.

"Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.

Rectron Inc does not assume any liability arising out of the application or use of any product or circuit.

Features

  • Low cost.
  • Low leakage.
  • Low forward voltage drop.
  • High current capability DO-15.

📥 Download Datasheet

Datasheet preview – 1N5397

Datasheet Details

Part number 1N5397
Manufacturer Rectron
File Size 699.70 KB
Description SILICON RECTIFIER
Datasheet download datasheet 1N5397 Datasheet

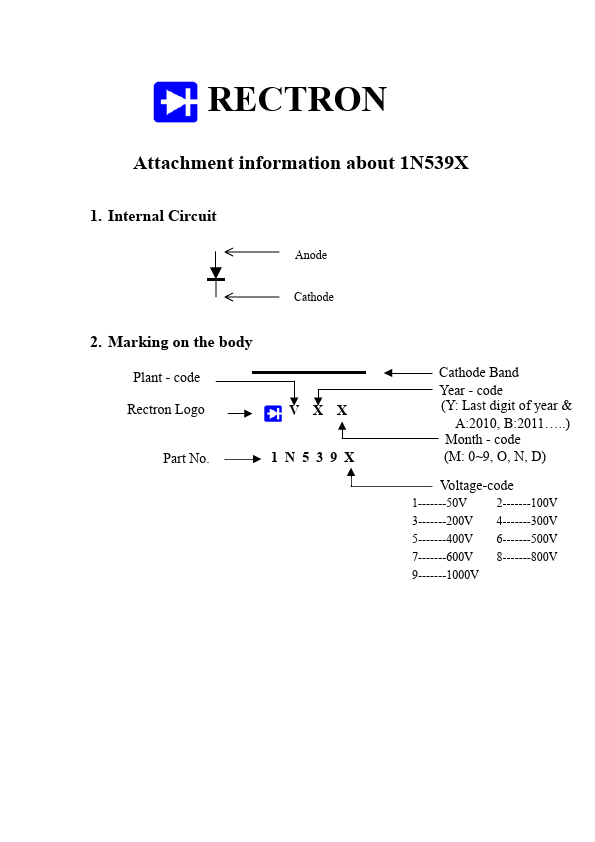

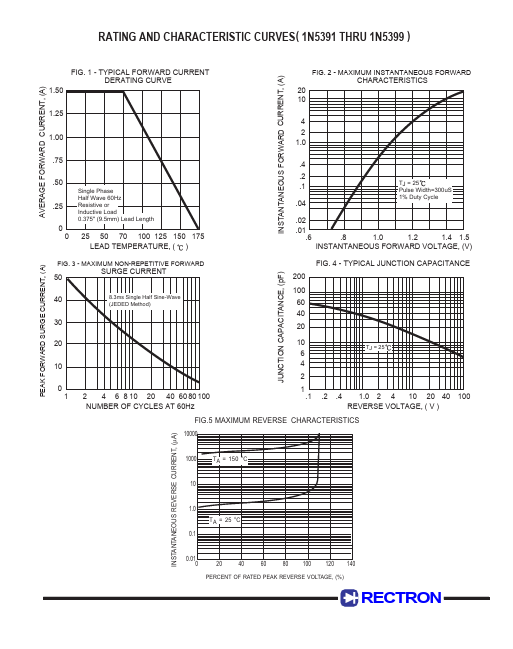

Additional preview pages of the 1N5397 datasheet.

📁 Similar Datasheet

  • 1N5397 - SILICON RECTIFIER (DC COMPONENTS)
  • 1N5397 - AXIAL LEADED SILICON RECTIFIER DIODES (Sunmate)
  • 1N5397 - GENERAL PURPOSE PLASTIC RECTIFIER (General Semiconductor)
  • 1N5397 - 1.5A RECTIFIER (Diodes Incorporated)
  • 1N5397 - 1.5 Amp Rectifier (Micro Commercial Components)
  • 1N5397 - 1.5 AMP SILICON RECTIFIERS (Formosa MS)
  • 1N5397 - Silicon Rectifiers (Diotec Semiconductor)
  • 1N5397 - General-Purpose Rectifiers (Fairchild Semiconductor)
  • 1N5397 - 1.5 Amps. Silicon Rectifiers (JGD)
  • 1N5397 - 1.5A STANDARD DIODE (WON-TOP)
Other Datasheets by Rectron

Full PDF Text Transcription

Click to expand full text

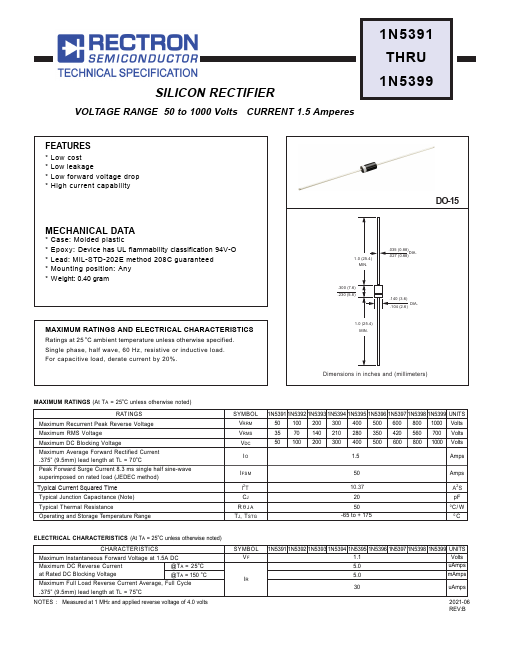

SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes 1N5391 THRU 1N5399 FEATURES * Low cost * Low leakage * Low forward voltage drop * High current capability DO-15 MECHANICAL DATA * Case: Molded plastic * Epoxy: Device has UL flammability classification 94V-O * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 0.40 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. 1.0 (25.4) MIN. .035 (0.88) .027 (0.68)DIA. .300 (7.6) .230 (5.8) 1.0 (25.4) MIN. .140 (3.6) .104 (2.6) DIA.
