6A10G GLASS PASSIVATED SILICON RECTIFIER

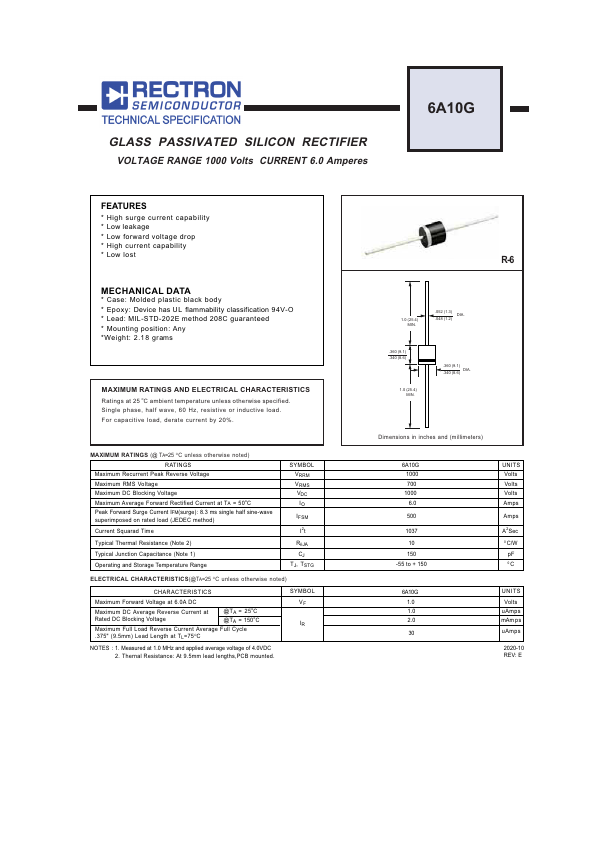

📥 Download Datasheet  Datasheet Preview Page 1

Description

GLASS PASSIVATED SILICON RECTIFIER VOLTAGE RANGE 1000 Volts CURRENT 6.0 Amperes 6A10G .
only.

📥 Download Datasheet

Preview of 6A10G PDF

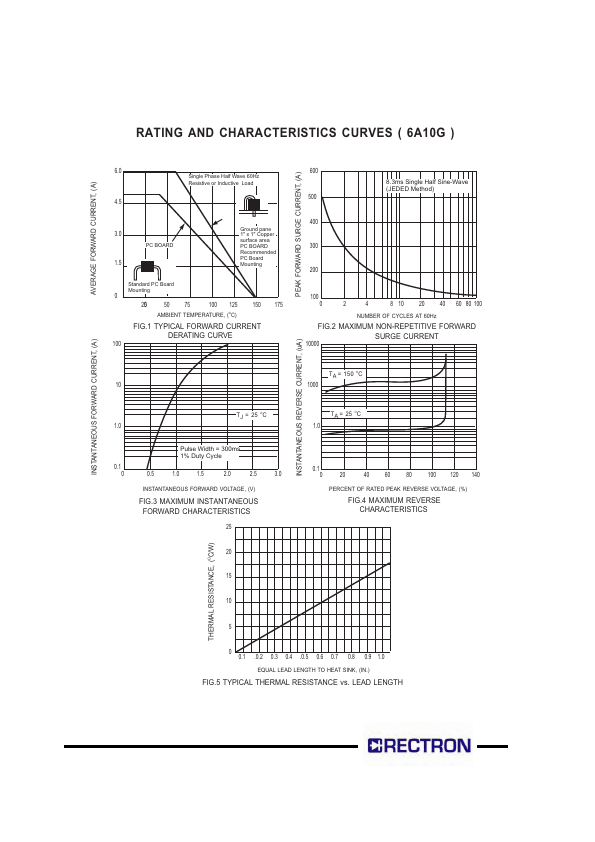

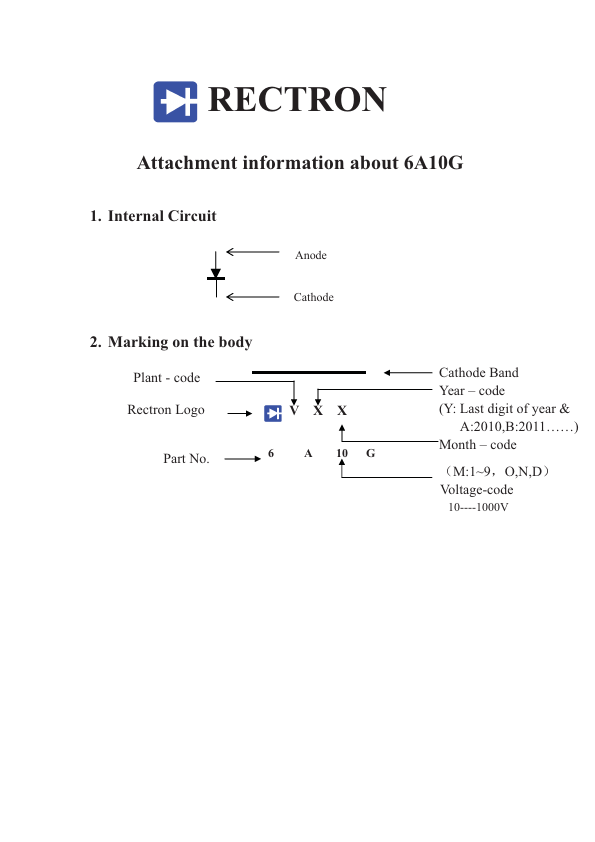

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
6A10G
Manufacturer
Rectron
File Size
314.96 KB
Datasheet
6A10G-Rectron.pdf
Description
GLASS PASSIVATED SILICON RECTIFIER

Features

* High surge current capability
* Low leakage
* Low forward voltage drop
* High current capability
* Low lost MECHANICAL DATA
* Case: Molded plastic black body
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guaranteed
* M

Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not d
