BAV17 - SMALL SIGNAL SWITCHING DIODE

Datasheet Summary

Description

only.

"Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.

Rectron Inc does not assume any liability arising out of the application or use of any product or circuit.

Features

Silicon epitaxial planar diode.
DO-35 Package,glass case.
High speed switching diode.
500 mW power dissipation.

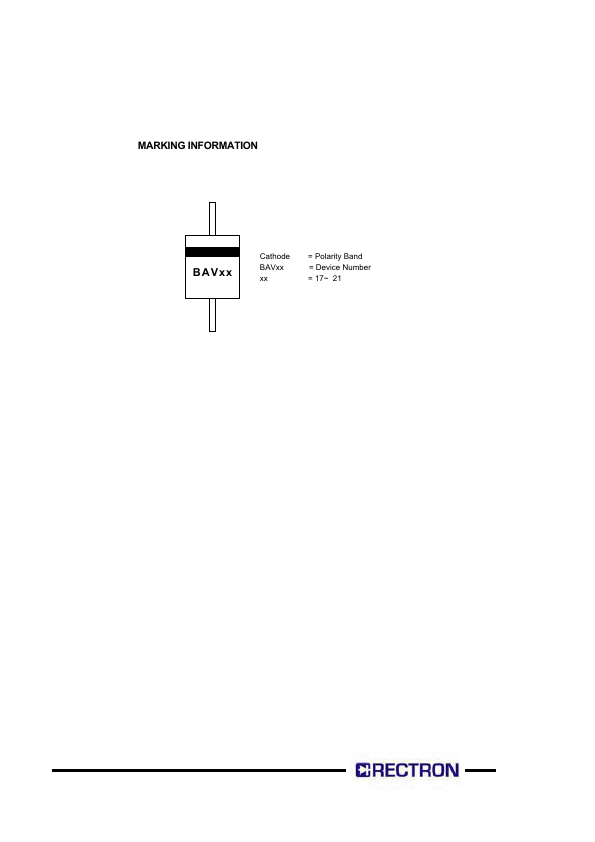

Polarity: Color band denotes cathode DO-35.

Datasheet Details

Part number	BAV17
Manufacturer	Rectron
File Size	70.78 KB
Description	SMALL SIGNAL SWITCHING DIODE
Datasheet	BAV17 Datasheet
Additional preview pages of the BAV17 datasheet.

📁 Similar Datasheet

BAV17 - Small Signal Switching Diodes (Vishay)

BAV17 - SMALL SIGAL SWITCHING DIODES (Sunmate)

BAV170 - DUAL SURFACE MOUNT LOW LEAKAGE DIODE (DIODES)

BAV170 - Low-leakage double diode (NXP)

BAV170 - Silicon Low Leakage Diode Array (Infineon Technologies AG)

BAV170 - SURFACE MOUNT SWITCHING DIODES (TIPTEK)

BAV170 - Low-leakage double diode (nexperia)

BAV170 - LOW LEAKAGE SWITCHING DIODES (Pan Jit International)

BAV170 - Low Leakage Diode (MCC)

BAV170 - Switching Diodes (Kexin)

Full PDF Text Transcription

Click to expand full text

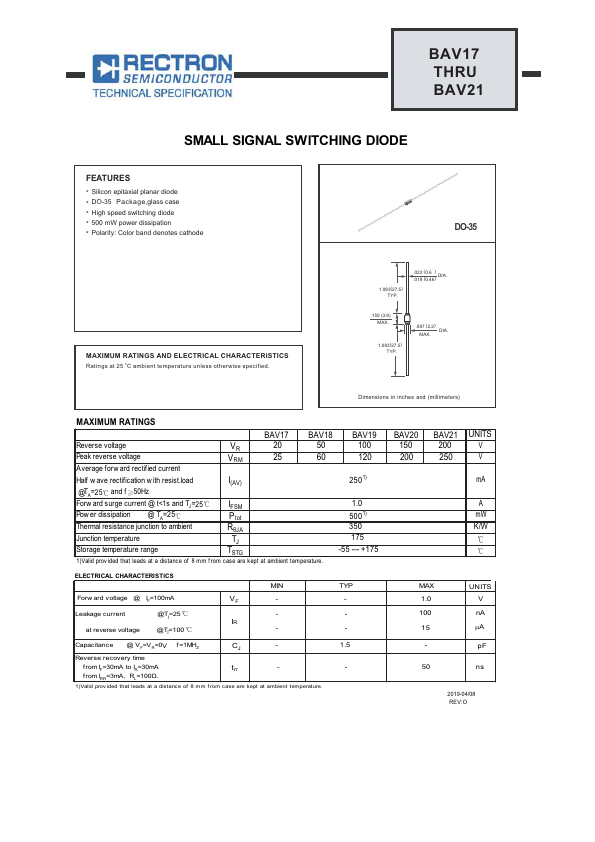

BAV17 THRU BAV21 SMALL SIGNAL SWITCHING DIODE FEATURES * Silicon epitaxial planar diode * DO-35 Package,glass case * High speed switching diode * 500 mW power dissipation * Polarity: Color band denotes cathode DO-35 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. 1.083 (27.5) TYP. .022 (0.6 ) DIA. .018 (0.46) .150 (3.8) MAX. 1.083 (27.5) TYP. .087 (2.2) DIA. MAX. Dimensions in inches and (millimeters) MAXIMUM RATINGS BAV17 BAV18 BAV19 Reverse voltage Peak reverse voltage Average forw ard rectified current VR 20 VRM 25 50 100 60 120 Half w ave rectification w ith resist.
