BAV99W - SWITCHING DIODE

Datasheet Summary

Description

only.

"Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.

Rectron Inc does not assume any liability arising out of the application or use of any product or circuit.

Features

z For high-speed switching.

Rectron

📥 Download Datasheet

Datasheet Details

Part number	BAV99W
Manufacturer	Rectron
File Size	663.58 KB
Description	SWITCHING DIODE
Datasheet	BAV99W Datasheet

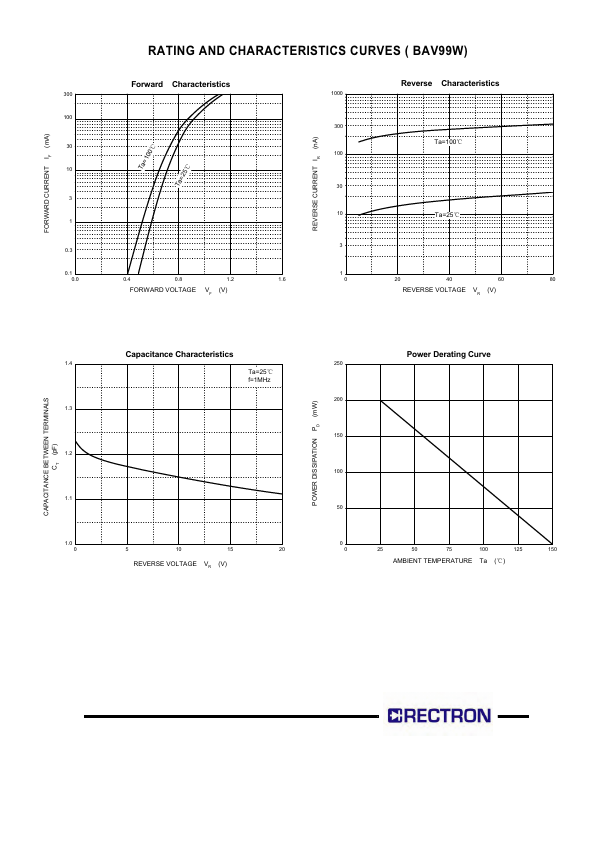

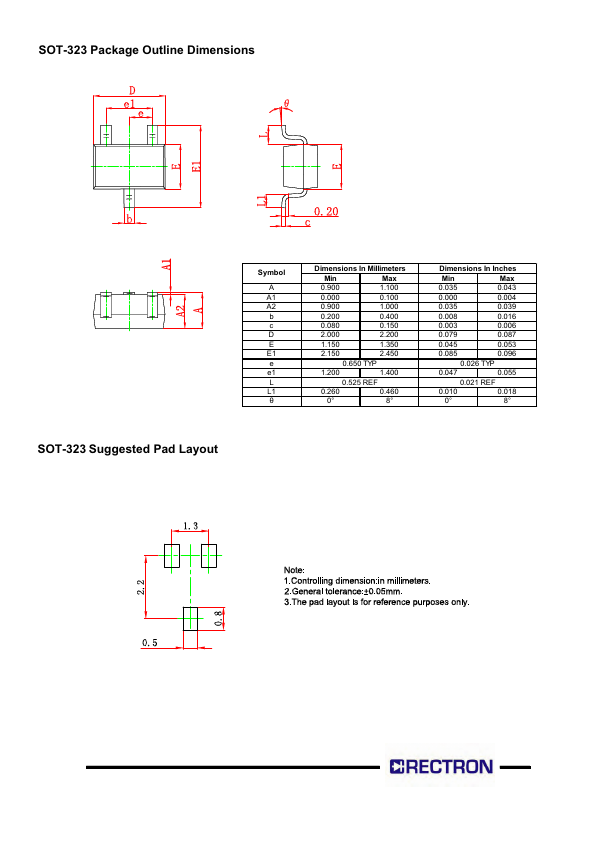

Additional preview pages of the BAV99W datasheet.

📁 Similar Datasheet

BAV99W - FAST SWITCHING DIODE (SMC Diode)
BAV99W - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
BAV99W - Switching Diodes (Toshiba)
BAV99W - Switching Diode Array (Taiwan Semiconductor)
BAV99W - Silicon Switching Diode (Infineon)
BAV99W - Switching Diode (GOODARK)
BAV99W - SURFACE MOUNT SWITCHING DIODES (PANJIT)
BAV99W - Surface Mount Small Signal Double-Diodes (Diotec)
BAV99W - DUAL SURFACE MOUNT SWITCHING DIODE (Diodes)
BAV99W - High-speed switching diodes (nexperia)

Other Datasheets by Rectron

BAV16W - SMALL SIGNAL DIODE
BAV16WS - SMALL SIGNAL DIODE
BAV17 - SMALL SIGNAL SWITCHING DIODE
BAV18 - SMALL SIGNAL SWITCHING DIODE
BAV19 - SMALL SIGNAL SWITCHING DIODE
BAV19W - SMALL SIGNAL DIODE
BAV19WS - Fast Switching Diode
BAV20 - SMALL SIGNAL SWITCHING DIODE

Full PDF Text Transcription

Click to expand full text

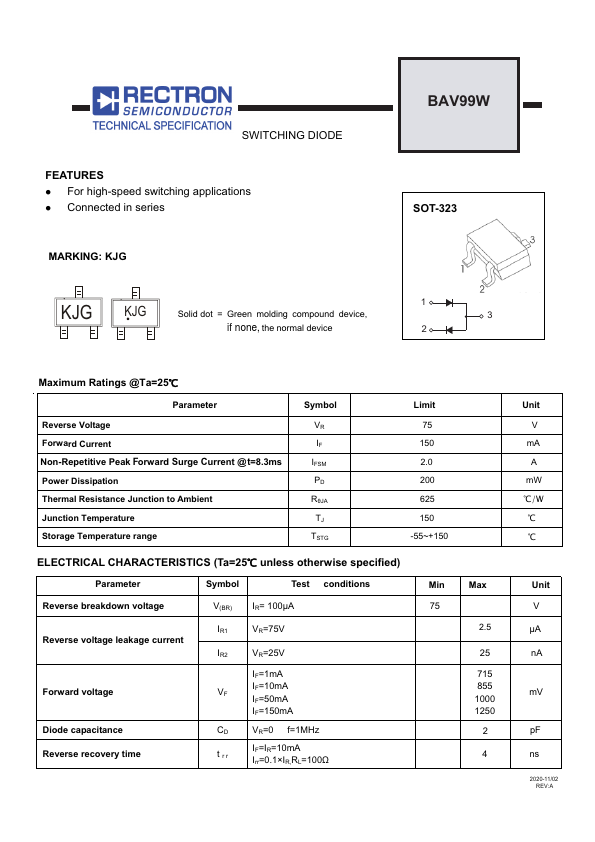

SWITCHING DIODE FEATURES z For high-speed switching applications z Connected in series MARKING: KJG KJG KJG Solid dot = Green molding compound device, if none, the normal device BAV99W SOT-323 1 3 2 0D[LPXP 5DWLQJV #7D Я 3DUDPHWHU 5HYHUVH 9ROWDJH )RUZDUG &XUUHQW Non-Repetitive Peak Forward Surge Current @t=8.3ms 3RZHU 'LVVLSDWLRQ 7KHUPDO 5HVLVWDQFH -XQFWLRQ WR $PELHQW -XQFWLRQ 7HPSHUDWXUH 6WRUDJH 7HPSHUDWXUH UDQJH 6PERO VR IF IFSM PD RșJA TJ TSTG /LPLW 150 2.
