BZX55C5V7 Datasheet - Rectron

BZX55C5V7 ZENER DIODE

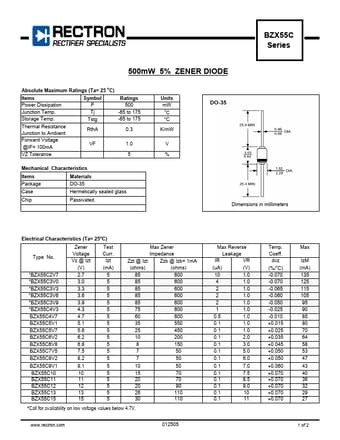

BZX55C Series 500mW 5% ZENER DIODE Absolute Maximum Ratings (Ta= 25 oC) Items Power Dissipation Junction Temp. Storage Temp. Thermal Resistance Junction to Ambient Forward Voltage @IF= 100mA VZ Tolerance Symbol P Tj Tstg RthA VF Ratings 500 -65 to 175 -65 to 175 0.3 1.0 5 Mechanical Characteristics Items Package Materials DO-35 Case Hermetically sealed glass Chip Passivated Units mW oC oC K/mW V % DO-35 Dimensions in millimeters Electrical Characteristics (Ta= 25oC) Type No. Zen.

BZX55C5V7 Datasheet (89.93 KB)
