BZX55C6V8 ZENER DIODE

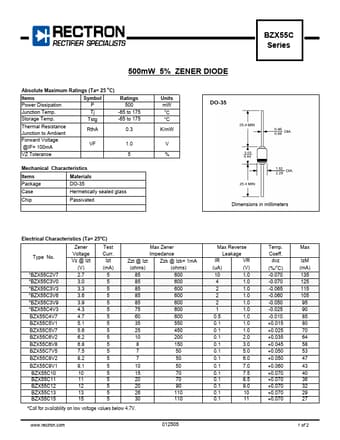

BZX55C Series 500mW 5% ZENER DIODE Absolute Maximum Ratings (Ta= 25 oC) Items Power Dissipation Junction Temp. Storage Temp. Thermal Resistance Junction to Ambient Forward Voltage @IF= 100mA VZ Tolerance Symbol P Tj Tstg RthA VF Ratings 500 -65 to 175 -65 to 175 0.3 1.0 5 Mechanical Characteristics Items Package Materials DO-35 Case Hermetically sealed glass Chip Passivated Units mW oC oC K/mW V % DO-35 Dimensions in millimeters Electrical Characteristics (Ta= 25oC) Type No. Zen.

BZX55C2V7-Rectron.pdf

BZX55C6V8 Datasheet Preview — This datasheet PDF includes multiple part numbers: BZX55C6V8, BZX55C2V7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BZX55C6V8, BZX55C2V7

Manufacturer:

Rectron

File Size:

89.93 KB

Description:

Zener diode.

Note:

This datasheet PDF includes multiple part numbers: BZX55C6V8, BZX55C2V7.
Please refer to the document for exact specifications by model.
