DS18W

The DS18W is Surface Mount Schottky Barrier Rectifier designed by Rectron.

Product Overview

Rectron

Datasheet Details

Part number	DS18W, DS12W
Manufacturer	Rectron
File Size	288.07 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	DS12W-Rectron.pdf
Note	This datasheet PDF includes multiple part numbers: DS18W, DS12W. Please refer to the document for exact specifications by model.

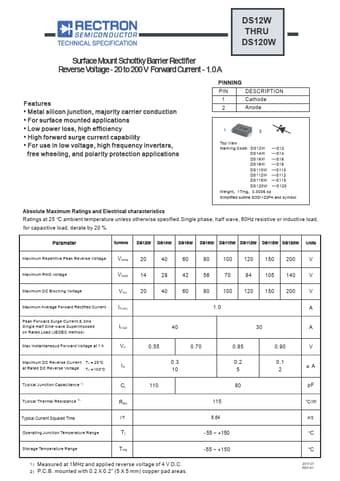

Additional preview pages of the DS18W datasheet.

Product details

Description

1 Cathode 2 Anode 1 S120 2 Top View Marking Code: DS12W ---S12 DS14W ---S14 DS16W ---S16 DS18W ---S18 DS110W ---S110 DS112W ---S112 DS115W ---S115 DS120W ---S120 Weight 17mg 0.0006 oz Simplified outline SOD-123FH and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols DS12W DS14W DS16W DS18W DS110W DS112W DS1

Features

Metal silicon junction, majority carrier conduction.
For surface mounted.
