FM120 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Overview

Rectron

Datasheet Details

Part number	FM120
Manufacturer	Rectron
File Size	88.30 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	FM120 Datasheet

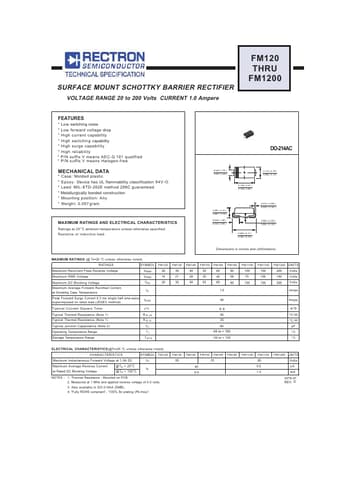

Additional preview pages of the FM120 datasheet.

Product details

Description

SCHOTTKY Cathode Band SX VYWW Year code (Y: Last digit of year & A:2010,B:2011…….) Part No.Voltage-code 2--------20V 8--------80V 3--------30V 10-------100V 4--------40V 15-------150V 5--------50V 20-------200V 6--------60V Week code (WW:01~52) PACKAGING OF DIODE AND BRIDGE RECTIFIERS REEL PACK PACKAGE PACKING EA PER CODE REEL EA PER INNER BOX COMPONENT SPACE (mm) TAPE SPACE (mm) REEL DIA (mm) CARTON SIZE (mm) EA PER CARTON GROSS WEIGHT(Kg) SMA -T 1,500 6,

Features

Low switching noise.
Low forward voltage drop.
High current capability.
High switching capability.
High surge capabitity.
High reliability.
P/N suffix V means AEC-Q 101 qualified.
P/N suffix V means Halogen-free.
