FM3012-W-A01 GLASS PASSIVATED SILICON RECTIFIER

FM3012-W-A01 Description

SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER VOLTAGE 1200 Volts CURRENT 3.0 Amperes FM3012 -W-A01 .
Cathode Band 3CX VYWW Year. code: (Y:Last digit of year A:2010; B:2011;) Rectron Logo Part No. -.

FM3012-W-A01 Features

* Glass passivated device

FM3012-W-A01 Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* Weight: 0.24 gram MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
* MSL: 1 Level SMC 0.125 (3.17 ) 0.115 (2.92 ) 0.280 ( 7.11 ) 0.260 ( 6.60 ) 0.245 ( 6.22 ) 0

📥 Download Datasheet

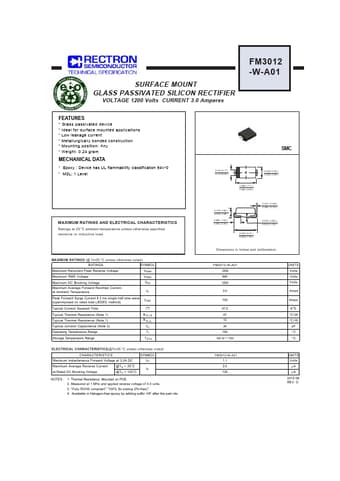

Preview of FM3012-W-A01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FM3012-W-A01
Manufacturer
Rectron
File Size
547.15 KB
Datasheet
FM3012-W-A01-Rectron.pdf
Description
GLASS PASSIVATED SILICON RECTIFIER
