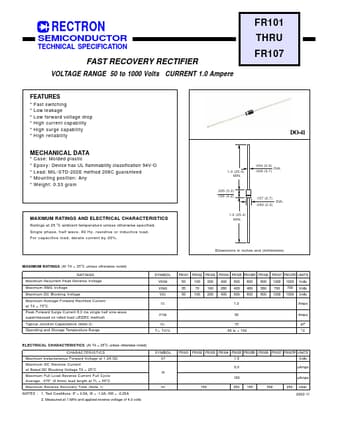

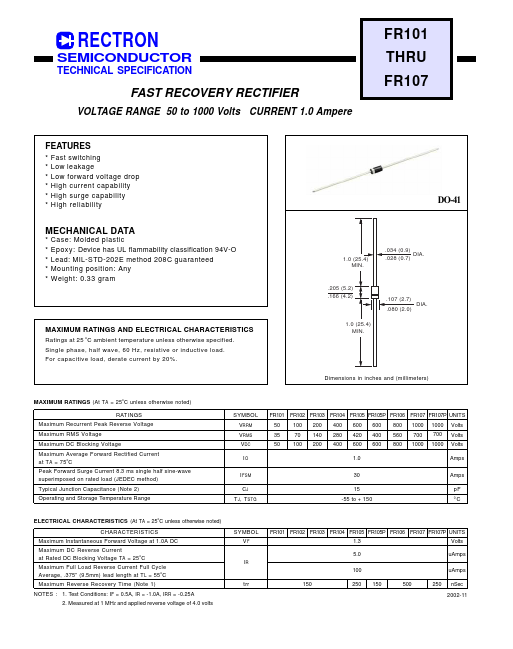

FR103
FEATURES
- Fast switching
- Low leakage
- Low forward voltage drop
- High current capability
- High surge capability
- High reliability
DO-41
MECHANICAL DATA
- Case: Molded plastic
- Epoxy: Device has UL flammability classification 94V-O
- Lead: MIL-STD-202E method 208C guaranteed
- Mounting position: Any
- Weight: 0.33 gram

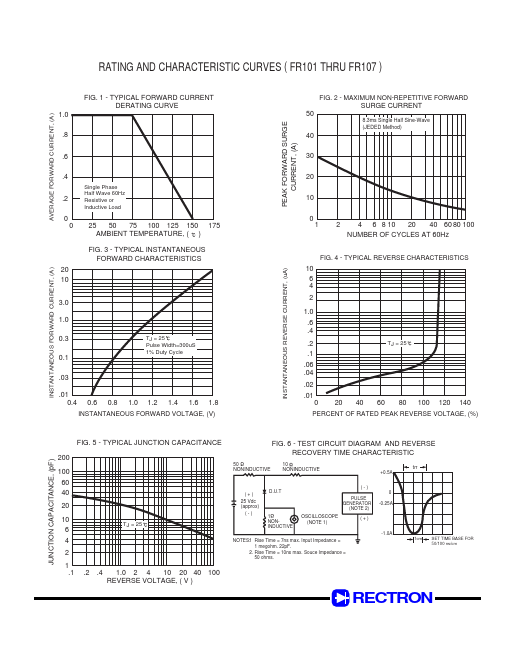

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
1.0 (25.4) MIN.
.034 (0.9) DIA. .028 (0.7)
.205 (5.2) .166 (4.2)
1.0 (25.4) MIN.
.107 (2.7) DIA.
.080 (2.0)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (At TA = 25o C unless otherwise noted)
RATINGS Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at TA = 75o C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC...
