FR104, FR101, FAST RECOVERY RECTIFIER

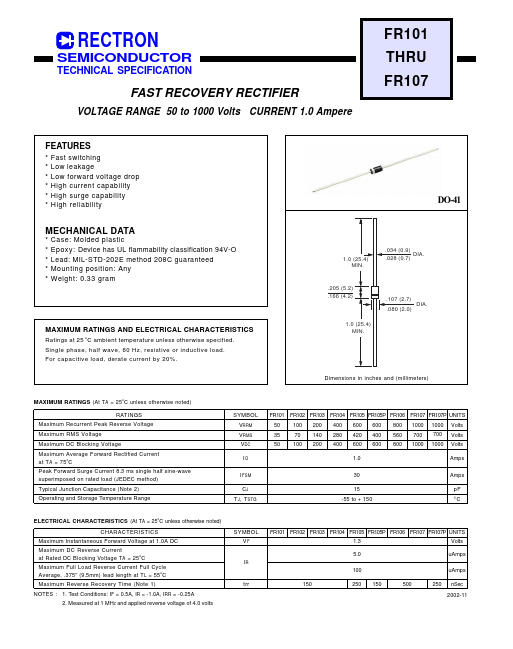

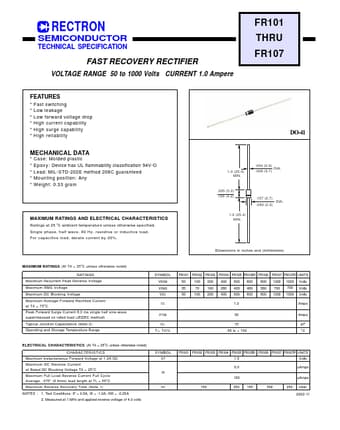

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere FR101 THRU FR107 .

datasheet Preview Page 1 from Datasheet4u.com

FR101-Rectron.pdf

FR104 Datasheet Preview — This datasheet PDF includes multiple part numbers: FR104, FR101. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FR104, FR101

Manufacturer:

Rectron

File Size:

24.79 KB

Description:

FAST RECOVERY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: FR104, FR101.
Please refer to the document for exact specifications by model.

Features

* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High surge capability
* High reliability DO-41 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C
