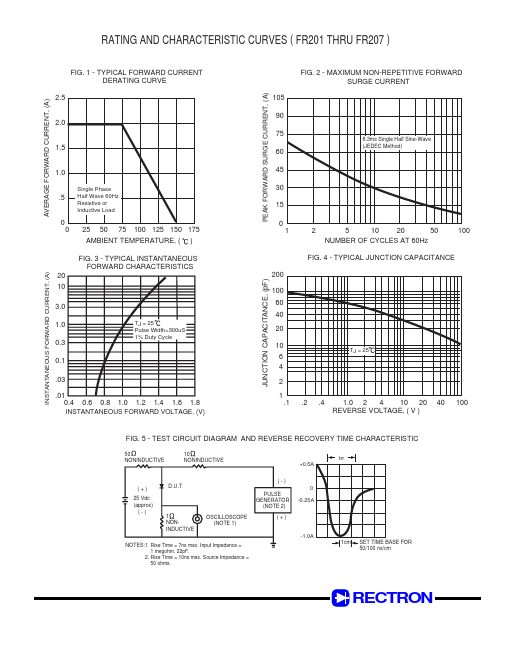

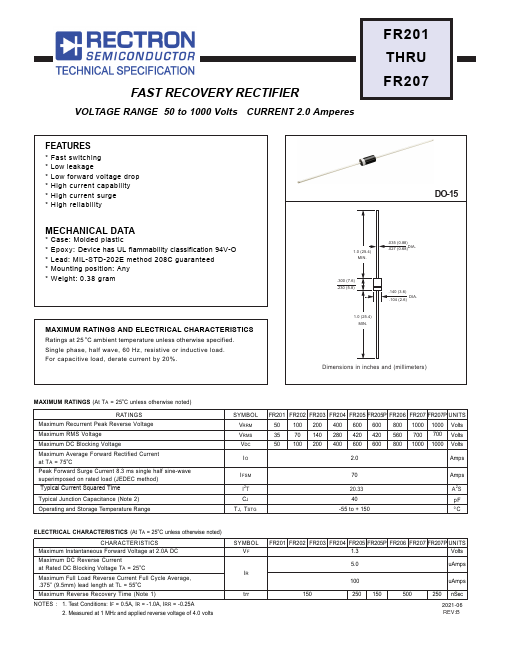

FR201 - FAST RECOVERY RECTIFIER

Datasheet Summary

Description

Rectron Logo Part No.

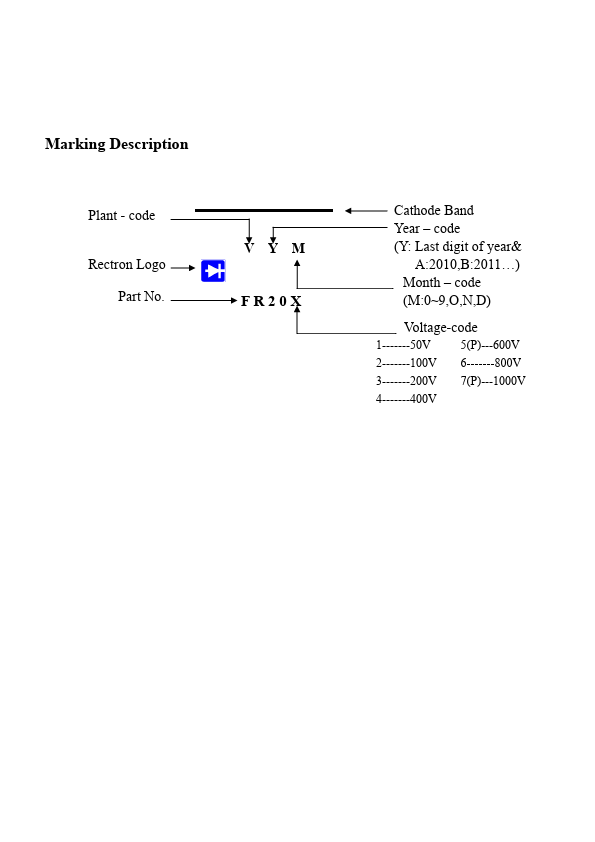

code (Y: Last digit of year& A:2010,B:2011…) Month code (M:0~9,O,N,D) Voltage-code 1-------50V 5(P)---600V 2-------100V 6-------800V 3-------200V 7(P)---1000V 4-------400V PACKAGING OF DIODE AND BRIDGE RECTIFIERS

Features

  • Fast switching.
  • Low leakage.
  • Low forward voltage drop.
  • High current capability.
  • High current surge.
  • High reliability.
