FR204, FR201 FAST RECOVERY RECTIFIER

Rectron

Description

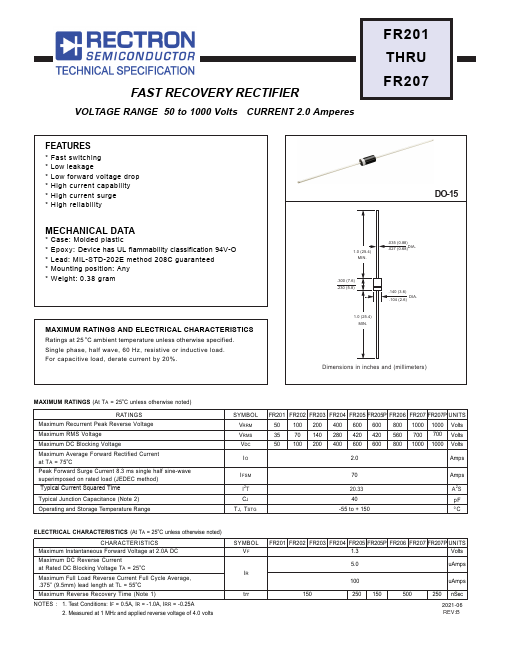

FAST RECOVERY RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes FR201 THRU FR207 .

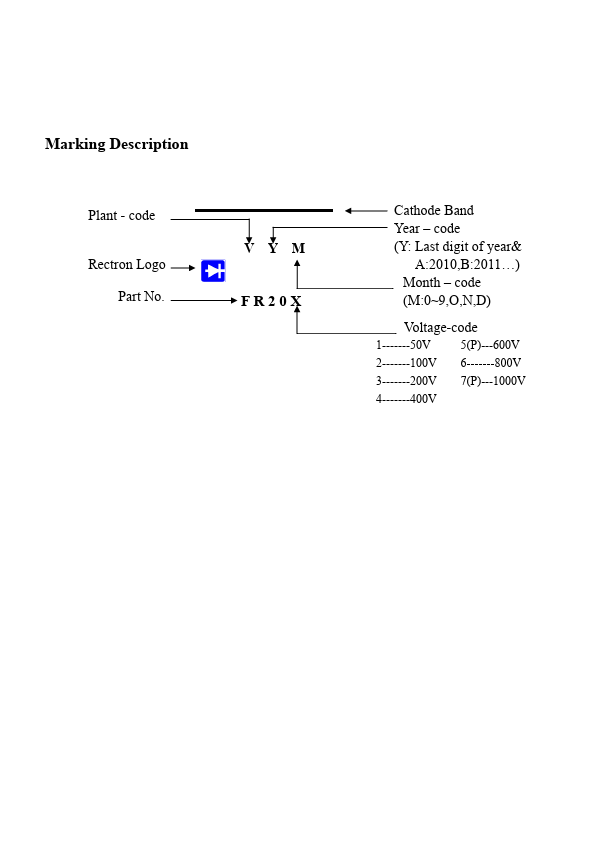

Plant - code Rectron Logo Part No. code (Y: Last digit of year& A:2010,B:2011…) Month. code (M:0~9,O.

📥 Download Datasheet

FR204 Datasheet Preview — This datasheet PDF includes multiple part numbers: FR204, FR201. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FR204, FR201
Manufacturer: Rectron
File Size: 691.45 KB
Datasheet: FR201-Rectron.pdf
Description: FAST RECOVERY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: FR204, FR201.
Please refer to the document for exact specifications by model.

Features

* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High current surge
* High reliability MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guaranteed

Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products
