MM1Z5221B - SURFACE MOUNT ZENER DIODE

Features

  • Planar Die Construction.
  • 500mW Power Dissipation.
  • General Purpose, Medium Current.
  • Ldeally Suited for Automated Assembly Processes.

📥 Download Datasheet

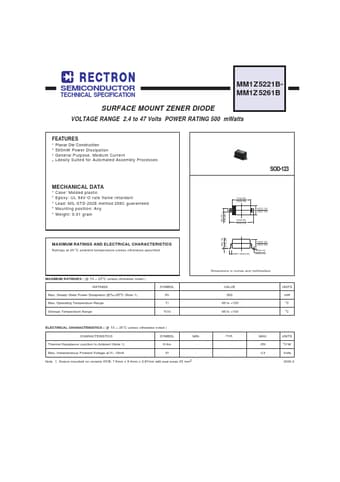

Datasheet preview – MM1Z5221B

Datasheet Details

Part number MM1Z5221B
Manufacturer Rectron
File Size 1.34 MB
Description SURFACE MOUNT ZENER DIODE
Datasheet download datasheet MM1Z5221B Datasheet
Additional preview pages of the MM1Z5221B datasheet.

📁 Similar Datasheet

  • MM1Z5221B - SILICON PLANAR ZENER DIODES (SEMTECH)
  • MM1Z5221B - SILICON PLANAR ZENER DIODES (CUMSUMI)
  • MM1Z5221B - SILICON PLANAR ZENER DIODES (JinYu)
  • MM1Z5221B - ZENER DIODES (EIC)
  • MM1Z5221B - 0.5W SILICON PLANAR ZENER DIODES (JINAN JINGHENG ELECTRONICS)
  • MM1Z5221A - 500mW Silicon Planar Zener Diodes (CUMSUMI)
  • MM1Z5222B - SILICON PLANAR ZENER DIODES (SEMTECH)
  • MM1Z5222B - 0.5W SILICON PLANAR ZENER DIODES (JINAN JINGHENG ELECTRONICS)
  • MM1Z5223A - 500mW Silicon Planar Zener Diodes (CUMSUMI)
  • MM1Z5223B - SILICON PLANAR ZENER DIODES (SEMTECH)
Other Datasheets by Rectron

Full PDF Text Transcription

Click to expand full text
RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION MM1Z5221BMM1Z 5261B SURFACE MOUNT ZENER DIODE VOLTAGE RANGE 2.4 to 47 Volts POWER RATING 500 mWatts FEATURES * Planar Die Construction * 500mW Power Dissipation * General Purpose, Medium Current * Ldeally Suited for Automated Assembly Processes MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-O rate flame retardant * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 0.01 gram .026(.65) .018(.45) SOD-123 .110(2.80) .102(2.60) .152(3.85) .140(3.55) .067(1.70) .059(1.50) .006(.15) .003(.08) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. REF .020(0.50) .049(1.25) .041(1.05) .004(0.10) .000(0.
