* Low leakage Low forward voltage Mounting position: Any Surge overload rating: 300 amperes peak Ideal for printed cikcuit boakds High forward surge current capability RS-20M .189 (4.8) 1.193 (30.3) 1.169 (29.7) .197 (5) MECHANICAL DATA
* UL listed the recogni
RS2001M
Rectron
60.25 KB

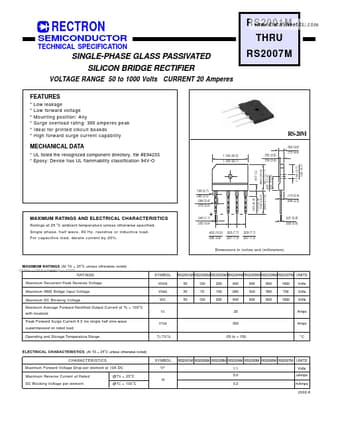

(rs2001m - rs2007m) single-phase glass passivated silicon bridge rectifier.
RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
RS2001M THRU RS2007M
SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 V.
