RS2003M, RS2004M, SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

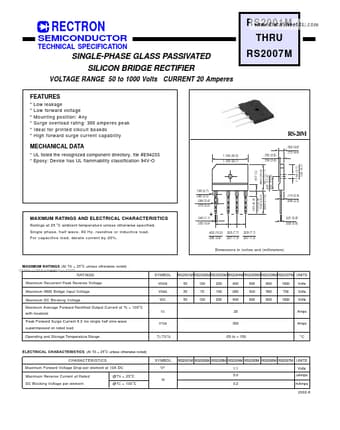

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION RS2001M THRU RS2007M SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 V.

RS2004M_Rectron.pdf

RS2003M Datasheet Preview — This datasheet PDF includes multiple part numbers: RS2003M, RS2004M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS2003M, RS2004M

Manufacturer:

Rectron

File Size:

60.25 KB

Description:

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: RS2003M, RS2004M.
Please refer to the document for exact specifications by model.

Features

* Low leakage Low forward voltage Mounting position: Any Surge overload rating: 300 amperes peak Ideal for printed cikcuit boakds High forward surge current capability RS-20M .189 (4.8) 1.193 (30.3) 1.169 (29.7) .197 (5) MECHANICAL DATA
* UL listed the recogni
