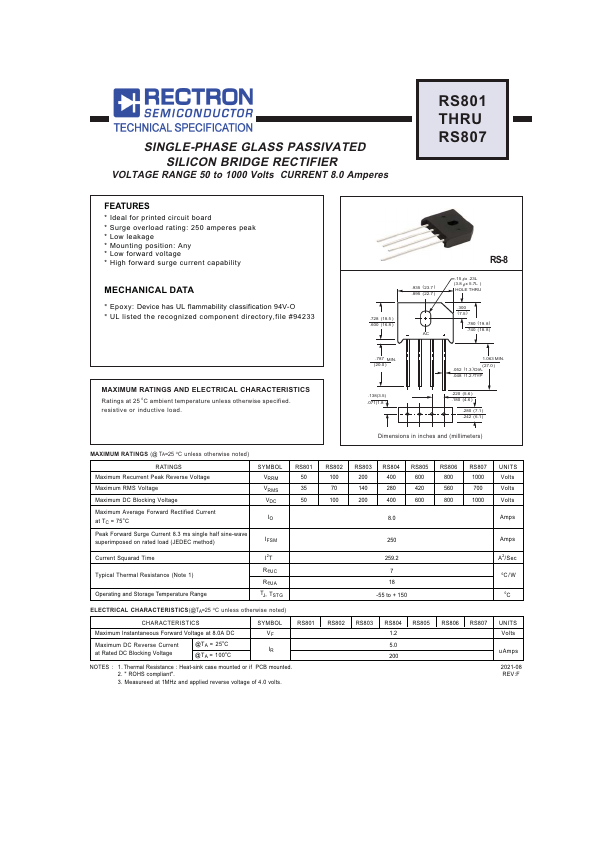

RS802, RS801 SILICON BRIDGE RECTIFIER

Rectron

Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes RS801 THRU RS807 .

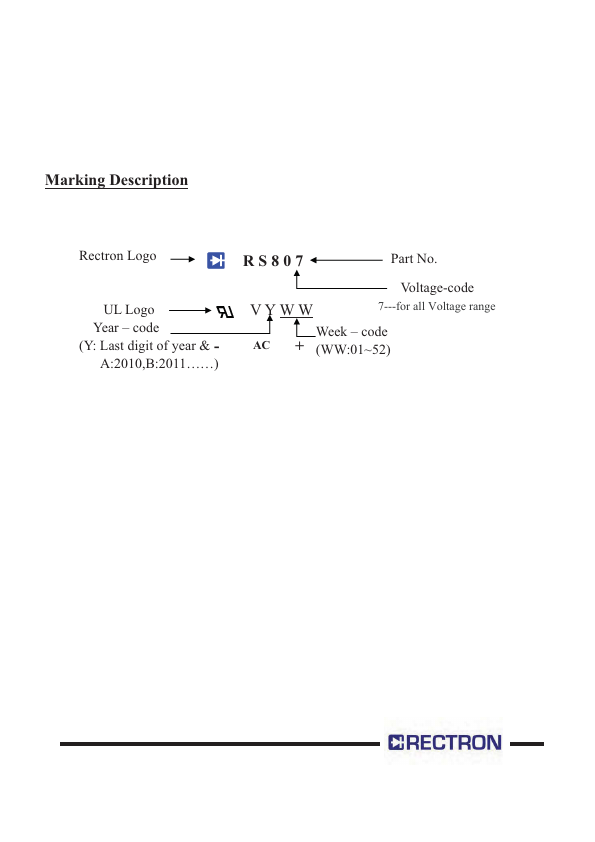

Rectron Logo UL Logo Year. code (Y: Last digit of year & - A:2010,B:2011……) RS807 Part No. -for all Voltage.

📥 Download Datasheet

RS802 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS802, RS801. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS802, RS801
Manufacturer: Rectron
File Size: 114.42 KB
Datasheet: RS801-Rectron.pdf
Description: SILICON BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: RS802, RS801.
Please refer to the document for exact specifications by model.

Features

* Ideal for printed circuit board
* Surge overload rating: 250 amperes peak
* Low leakage
* Mounting position: Any
* Low forward voltage
* High forward surge current capability MECHANICAL DATA Epoxy: Device has UL flammability classification 94V-O UL listed the recognized

Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o
