RS802M, RS801M, SILICON BRIDGE RECTIFIER

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes RS801M THRU RS807M .
Rectron Logo UL Logo Year. code (Y:Last digit of year) RS80XM VYWW Week. code (WW:01~52) Part No.

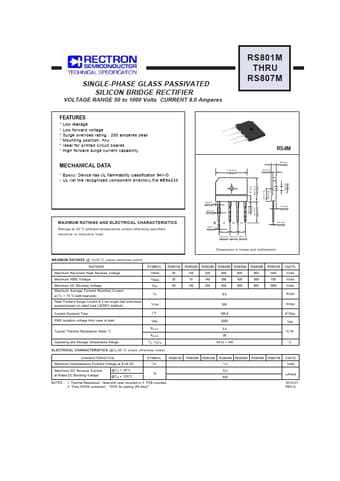

datasheet Preview Page 1 from Datasheet4u.com

RS801M-Rectron.pdf

RS802M Datasheet Preview — This datasheet PDF includes multiple part numbers: RS802M, RS801M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS802M, RS801M

Manufacturer:

Rectron

File Size:

323.09 KB

Description:

SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: RS802M, RS801M.
Please refer to the document for exact specifications by model.

Features

* Low leakage
* Low forward voltage
* Surge overload rating : 200 amperes peak
* Mounting position: Any
* Ideal for printed circuit boards
* High forward surge current capability MECHANICAL DATA
* Epoxy: Device has UL flammability classification 94V-O
* UL list the re

Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o
