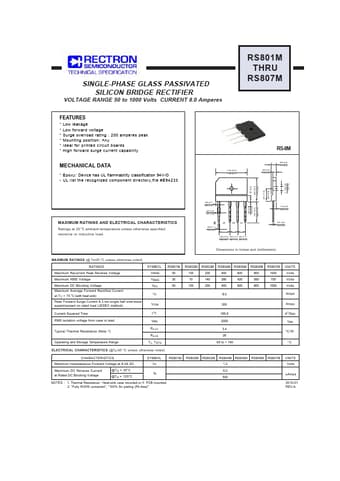

RS803M
FEATURES
- Low leakage
- Low forward voltage
- Surge overload rating : 200 amperes peak
- Mounting position: Any
- Ideal for printed circuit boards
- High forward surge current capability
MECHANICAL DATA
- Epoxy: Device has UL flammability classification 94V-O
- UL list the recognized ponent directory,file #E94233
1.193 (30.3) 1.169 (29.7)
RS-8M
.150 (3.8) .134 (3.4)
.189 (4.8) .173 (4.4) f. .138 (3.5) .126 (3.2)
.197 (5.0) .800 (20.3) .775 (19.7) .441 (11.2) .425 (10.8)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. resistive or inductive load.
.106 (2.7) .096 (2.3)
.087 (2.2) .071 (1.8)
.043 (1.1) .035 (0.9)
.402 (10.2) .303 (7.7) .303 (7.7) .386 (9.8) .287 (7.3) .287 (7.3)
.165 (4.2) .150 (3.8) .708 (18.0) .669 (17.0)
.114 (2.9) .098 (2.5)
.031 (0.8) .023 (0.6)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) RATINGS
Maximum Recurrent Peak Reverse Voltage Maximum...
