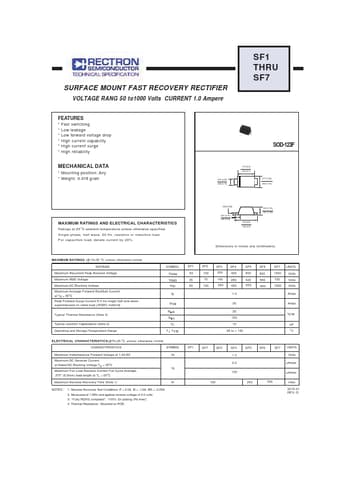

SF2
FEATURES
- Fast switching
- Low leakage
- Low forward voltage drop
- High current capability
- High currenf surge
- High reliability
MECHANICAL DATA
- Mounting position: Any
- Weight: 0.016 gram
SOD-123F
.035 (0.90) .028 (0.70)
.114 (2.9) .106 (2.7)
.077 (1.95) .069 (1.75)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
.008 (0.20)
.030 (0.75) .022 (0.55)
.150 (3.8) .142 (3.6)
.053 (1.35) .047 (1.20)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) RATINGS
Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at TA = 55o C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 4)
Typical Junction Capacitance (Note 2)...
