SMF26A Surface Mount Transient Voltage

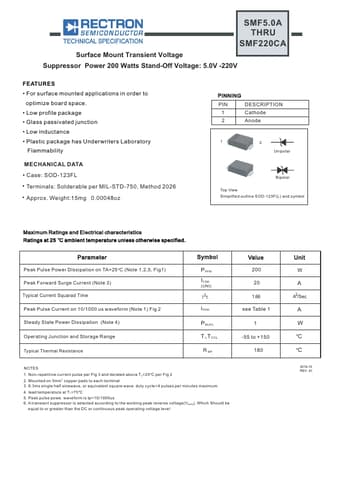

1 Cathode 2 Anode 12 Unipolar Bipolar Top View Simplified outline SOD-123F(L) and symbol Maximum Ratings and Electrical characteristics Ratings at 25 C ambient temperature unless otherwise specified. Parameter Peak Pulse Power Dissipation on TA=25 C (Note 1,2,5, Fig1) Peak Forward Surge Current (N.

SMF26A Features

* For surface mounted applications in order to optimize board space.

* Low profile package

* Glass passivated junction

* Low inductance

* Plastic package has Underwriters Laboratory Flammability MECHANICAL DATA

* Case: SOD-123FL

* Terminals: So
