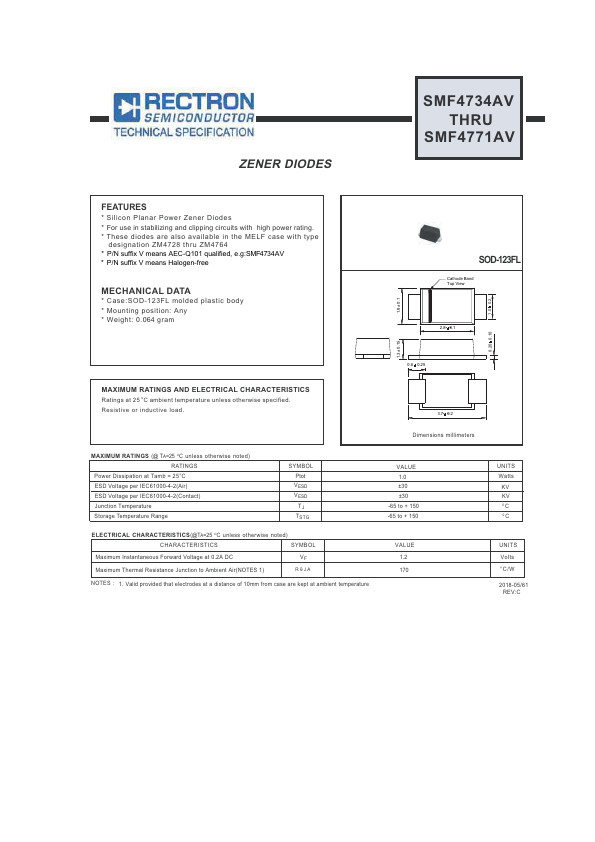

SMF4763AV
FEATURES
- Silicon Planar Power Zener Diodes
- For use in stabilizing and clipping circuits with high power rating.
- These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764
- P/N suffix V means AEC-Q101 qualified, e.g:SMF4734AV
- P/N suffix V means Halogen-free
MECHANICAL DATA
- Case:SOD-123FL molded plastic body
- Mounting position: Any
- Weight: 0.064 gram
1.8 ± 0.1
SOD-123FL
Cathode Band Top View
2.8- 0- .1
1.0 0.2
0.20 0.10
1.3 ± 0.15
0.6 0.25
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 o C ambient temperature unless otherwise specified. Resistive or inductive load.
MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) RATINGS
Power Dissipation at Tamb = 25°C ESD Voltage per IEC61000-4-2(Air) ESD Voltage per IEC61000-4-2(Contact) Junction Temperature Storage Temperature Range
SYMBOL Ptot VESD VESD TJ TSTG
ELECTRICAL CHARACTERISTICS(@TA=25 OC unless otherwise noted)
CHARACTERISTICS
SYMBOL
Maximum Instantaneous Forward...
