LV-1925 Datasheet - Reed Relays and Electronics

LV-1925 Reed Switch

LV-1925 Reed Switch for Line Voltage Switching Form A, Center Contact, Contact Rating Configurable All dimensions in mm The LV-1925 is designed for endurance at switching line voltage loads of 230V AC. Two versions are capable of switching 30W and 60W. The third version is manufactured with specially plated blades for endurance at high current levels and can switch up to 90W. When used with contact protection, direct switching of tungsten filament lamps is possible. This reed switch is Lead (Pb.

LV-1925_ReedRelaysandElectronics.pdf

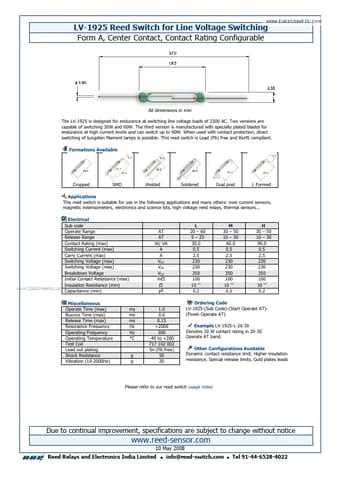

LV-1925 Datasheet Preview — Preview of LV-1925 PDF

Datasheet Details

Part number:

LV-1925

Manufacturer:

Reed Relays and Electronics

File Size:

120.16 KB

Description:

Reed switch.
