2SB647 Datasheet - Renesas Technology

2SB647 PNP Transistor

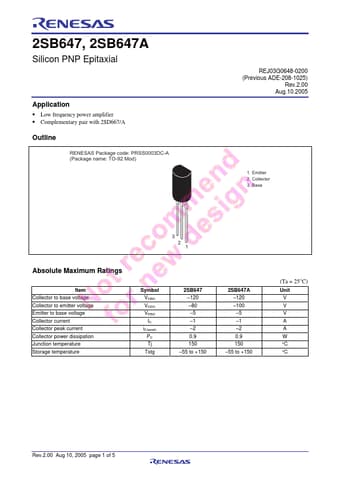

2SB647, 2SB647A Silicon PNP Epitaxial Application Low frequency power amplifier Complementary pair with 2SD667/A Outline RENESAS Package code: PRSS0003DC-A (Package name: TO-92 Mod) REJ03G0648-0200 (Previous ADE-208-1025) Rev.2.00 Aug.10.2005 1. Emitter 2. Collector 3. Base 3 2 1 Absolute Maximum Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperatu.

2SB647_RenesasTechnology.pdf

Preview of 2SB647 PDF
2SB647 Datasheet Preview Page 2 2SB647 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB647

Manufacturer:

Renesas ↗ Technology

File Size:

154.85 KB

Description:

Pnp transistor.
