HD74LV2GT241A - Dual Bus Buffer Noninverted

Renesas Technology

The HD74LV2GT241A by Renesas Technology is a Dual Bus Buffer Noninverted. Below is the official datasheet preview.

📥 Download Datasheet

HD74LV2GT241A Dual Bus Buffer Noninverted by Renesas Technology - Datasheet Preview — Official preview page of the **HD74LV2GT241A** Dual Bus Buffer Noninverted datasheet (Renesas Technology).

Datasheet Details

Part number	HD74LV2GT241A
Manufacturer	Renesas Technology
File Size	125.66 KB
Description	Dual Bus Buffer Noninverted
Datasheet	HD74LV2GT241A_RenesasTechnology.pdf

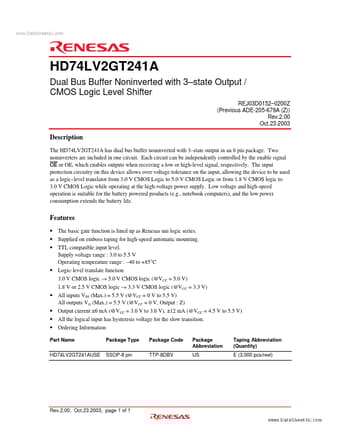

Additional preview pages of the HD74LV2GT241A datasheet.

HD74LV2GT241A Product details

Description

The HD74LV2GT241A has dual bus buffer noninverted with 3 state output in an 8 pin package. level translator from 3.0 V CMOS Logic to 5.0 V CMOS Logic o

Features

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
TTL compatible input level. Supply voltage range : 3.0 to 5.5 V Operating temperature range :.
40 to +85°C.
Logic-level translate function 3.0 V CMOS logic → 5.0 V CMOS logic (@VCC = 5.0 V) 1.8 V or 2.5 V CMOS logic → 3.3 V CMOS logic (@VCC = 3.3 V).
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO.
