M50224FP

1.5 Channel Motor Driver

M50224FP Features

* Minute CMOS process acceptance.Low consumption 1.5 full swing voltage drive H Bridge circuit built-in (PWM drive correspondence) DC/DC circuit built-in of 5V One AE operation circuit built-in AE (A sensor corresponds to amorphous and SPD) L

M50224FP General Description

M50224FP is the semiconductor integrated circuit which builds in the Motor drive circuit and DC/DC circuit suitable for the camera etc. 1.5 H bridges, the DC/DC circuit of 5VDC/DC, and AE operation circuit were built in one tip by adoption of a detailed CMOS process. The reduction in power consumpti.

M50224FP Datasheet (163.50 KB)

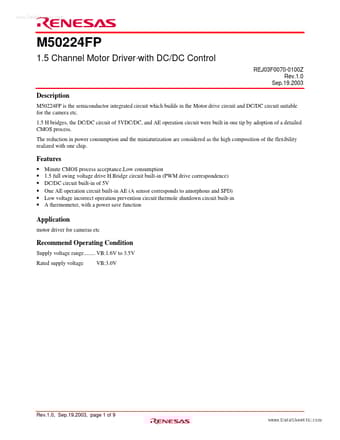

Preview of M50224FP PDF

Datasheet Details

Part number:

M50224FP

Manufacturer:

Renesas ↗ Technology

File Size:

163.50 KB

Description:

1.5 channel motor driver.
