R5F10xxxxxx - Combines Multi-channel 12-Bit A/D Converter

This page provides the datasheet information for the R5F10xxxxxx, a member of the R5F10xx Combines Multi-channel 12-Bit A/D Converter family.

Features

  • Data Memory Access (DMA) Controller.
  • Up to 2 fully programmable channels.
  • Transfer unit: 8- or 16-bit Multiple Communication Interfaces.
  • Up to 6 x I2C master 2.
  • Up to 1 x I C multi-master.
  • Up to 6 x CSI/SPI (7-, 8-bit).
  • Up to 3 x UART (7-, 8-, 9-bit).
  • Up to 1 x LIN Extended-Function Timers.
  • Multi-function 16-bit timers: Up to 8 channels.
  • Real-time clock (RTC): 1 channel (full calendar and alarm function with watch c.

📥 Download Datasheet

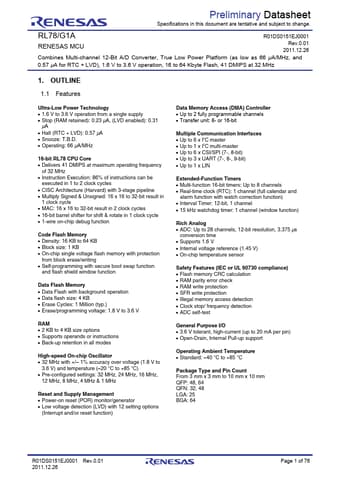

Datasheet preview – R5F10xxxxxx
