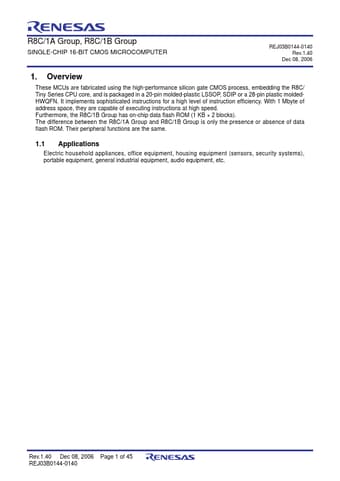

R8C/1A Group, R8C/1B Group SINGLE-CHIP 16-BIT CMOS MICROPUTER REJ03B0144-0140 Rev.1.40 Dec 08, 2006 1. Overview These MCUs are fabricated using the high-performance silicon gate CMOS process, embedding the R8C/ Tiny Series CPU core, and is packaged in a 20-pin molded-plastic LSSOP, SDIP or a 28-pin plastic molded HWQFN. It implements sophisticated instructions for a high level of instruction efficiency. With 1 Mbyte of address space, they are capable of executing instructions at high speed. Furthermore, the R8C/1B Group has on-chip data flash ROM (1 KB × 2 blocks). The difference between the R8C/1A Group and R8C/1B Group is only the presence or absence of data flash ROM. Their peripheral functions are the same. 1.1 Applications Electric household appliances, office equipment, housing equipment (sensors, security systems), portable equipment, general industrial equipment, audio equipment, etc. Rev.1.40 Dec 08, 2006 Page 1 of 45 REJ03B0144-0140 R8C/1A Group, R8C/1B Group 1. Overview 1.2 Performance Overview Table 1.1 outlines the Functions and Specifications for R8C/1A Group and Table 1.2 outlines the Functions and Specifications for R8C/1B Group. Table 1.1 Functions and Specifications for R8C/1A Group Peripheral Functions Item Number of fundamental instructions Minimum instruction execution time Operating mode Address space Memory capacity Ports LED drive ports Timers Serial interfaces Clock synchronous serial interface A/D converter Watchdog timer Interrupts Clock generation circuits Electric Characteristics Oscillation stop detection function Voltage detection circuit Power-on reset circuit Supply voltage Current consumption Flash Memory Programming and erasure voltage Programming and erasure endurance Operating Ambient Temperature Package 89 instructions Specification 50 ns (f(XIN) = 20 MHz, VCC = 3.0 to 5.5 V) 100 ns (f(XIN) = 10 MHz, VCC = 2.7 to 5.5 V) Single-chip 1 Mbyte See Table 1.3 Product Information for R8C/1A Group I/O ports: 13...
