RKZ20B2KL, RKZ-KL - Silicon Planar Zener Diode

Name: RKZ20B2KL
SKU: RKZ20B2KL-761037

Renesas Technology

The RKZ20B2KL by Renesas Technology is a Silicon Planar Zener Diode. Below is the official datasheet preview.

Datasheet Details

Part number	RKZ20B2KL, RKZ-KL
Manufacturer	Renesas Technology
File Size	101.81 KB
Description	Silicon Planar Zener Diode
Datasheet	RKZ-KL_RenesasTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: RKZ20B2KL, RKZ-KL. Please refer to the document for exact specifications by model.

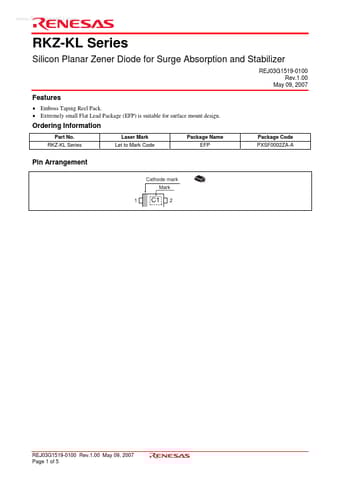

Additional preview pages of the RKZ20B2KL datasheet.

Emboss Taping Reel Pack.
Extremely small Flat Lead Package (EFP) is suitable for surface mount design. Ordering Information Part No. RKZ-KL Series Laser Mark Let to Mark Code Package Name EFP Package Code PXSF0002ZA-A Pin Arrangement Cathode mark Mark 1 C1 2 REJ03G1519-0100 Rev.1.00 May 09, 2007 Page 1 of 5 RKZ-KL Series Absolute Maximum Ratings (Ta = 25°C) Item Power dissipation Junction temperature Storage temperature Note: 1. With P. C. Board. Symbol Pd.
1 Valu.
