2A20112A

Critical Conduction Mode Interleaved PFC Controller

Renesas

2A20112A Features

* Absolute Maximum Ratings ⎯ Supply voltage Vcc: 24 V ⎯ Junction temperature Tj:

* 40 to +150°C

* Electrical Characteristics ⎯ VREF output voltage Vref: 5.0 V ± 1.5% ⎯ UVLO operation start voltage Vuvlh: 10.5 V ± 0.7 V ⎯ UVLO operation shutdown voltage Vuvll: 9.3 V ± 0.5 V ⎯ U

2A20112A General Description

The R2A20112A controls a boost converter to provide an active power factor correction. The R2A20112A adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching. Interleaving function improves ripple current on input or.

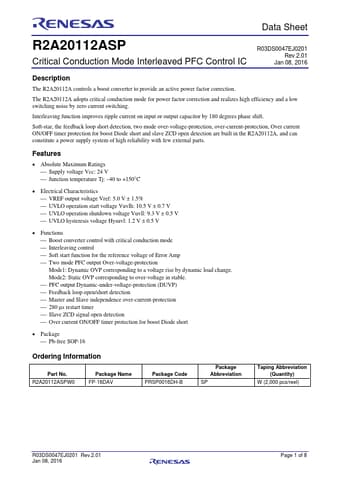

2A20112A Datasheet (265.90 KB)

2A20112A Datasheet Preview — Preview of 2A20112A PDF

Datasheet Details

Part number:

2A20112A

Manufacturer:

Renesas ↗

File Size:

265.90 KB

Description:

Critical conduction mode interleaved pfc controller.
