2SK1155

Silicon N Channel MOSFET

2SK1155 Features

* Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC-DC converter Outline RENESAS Package code: PRSS0004AC-A (Package name: TO-220AB) D G 1. Gate 2. Drain (Flange) 3. Source S 1 2

2SK1155 Datasheet (89.94 KB)

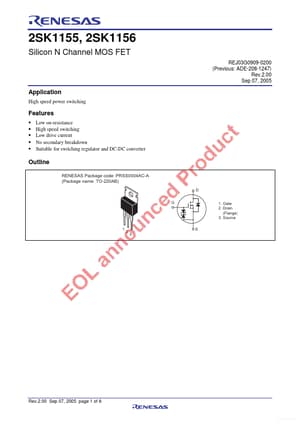

Preview of 2SK1155 PDF

Datasheet Details

Part number:

2SK1155

Manufacturer:

Renesas ↗

File Size:

89.94 KB

Description:

Silicon n channel mosfet.
2SK1155, 2SK1156 Silicon N Channel MOS FET REJ03G0909-0200 (Previous: ADE-208-1247) Rev.2.00 Sep 07, 2005 Application High speed power switching Fea.
