2SK2857C, N-CHANNEL MOSFET

Preliminary Data Sheet 2SK2857C N-CHANNEL MOSFET FOR SWITCHING R07DS1261EJ0200 Rev.2.00 Jun 11, 2015 .
The 2SK2857C, N-channel vertical type MOSFET designed for general-purpose switch, is a device which can be driven directly by a 4.

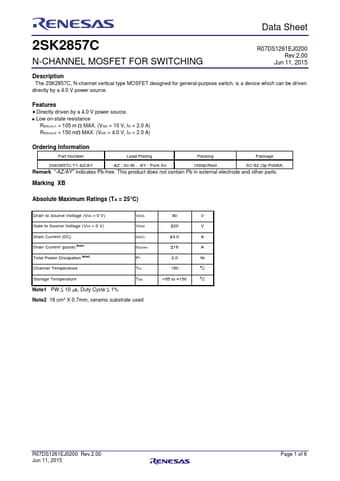

datasheet Preview Page 1 from Datasheet4u.com

2SK2857C-Renesas.pdf

2SK2857C Datasheet Preview — Preview of 2SK2857C PDF

Datasheet Details

Part number:

2SK2857C

Manufacturer:

Renesas ↗

File Size:

192.88 KB

Description:

N-CHANNEL MOSFET

Features

* Directly driven by a 4.0 V power source.
* Low on-state resistance RDS(on)1 = 105 m  MAX. (VGS = 10 V, ID = 2.0 A) RDS(on)2 = 150 m MAX. (VGS = 4.0 V, ID = 2.0 A) Ordering Information Part Number Lead Plating Packing Package 2SK2857C-T1-AZ/AY -AZ : Sn-Bi , -AY : Pure Sn 1000p/Ree

Applications

* for each Renesas Electronics product depends on the product's quality grade, as indicated below. "Standard": Computers; office equipment; communications equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; an
