Description
The 551S is a low cost, high-speed single input to four output clock buffer with best in class additive phase jitter of sub 50fsec.
Features
- Low additive phase jitter RMS: 50fs.
- Extremely low skew outputs (50ps).
- Low cost clock buffer.
- Packaged in 8-SOIC, 8-TSSOP, and 8-DFN.
- Input/output clock frequency up to 200MHz.
- Non-inverting output clock.
- Ideal for networking clocks.
- Operating voltages: 1.8V to 3.3V.
- Output Enable mode tri-states outputs.
- Advanced, low power CMOS process.
- Extended temperature range (-40°C to +105°C)

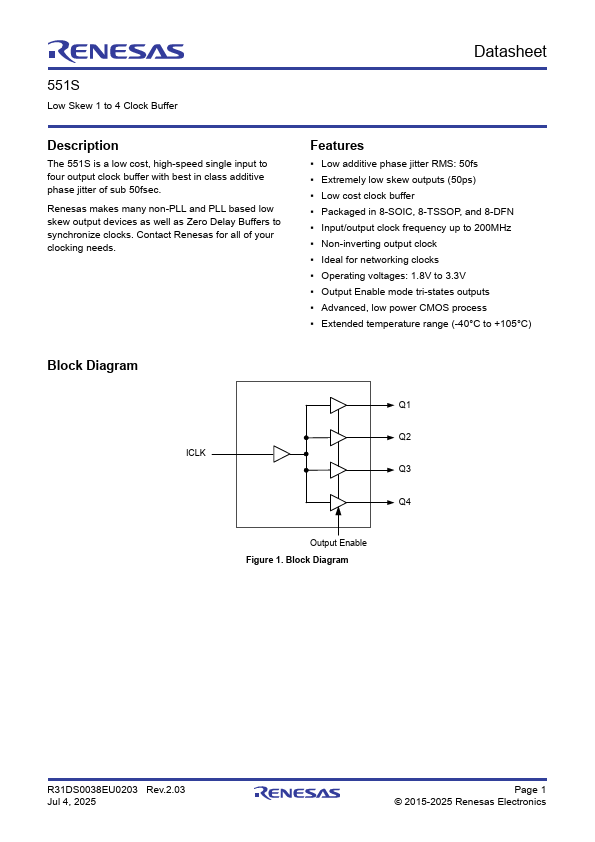

Block Diagram
Q1
Q2 ICLK
Q3
Q4
Output Enable Figure 1.

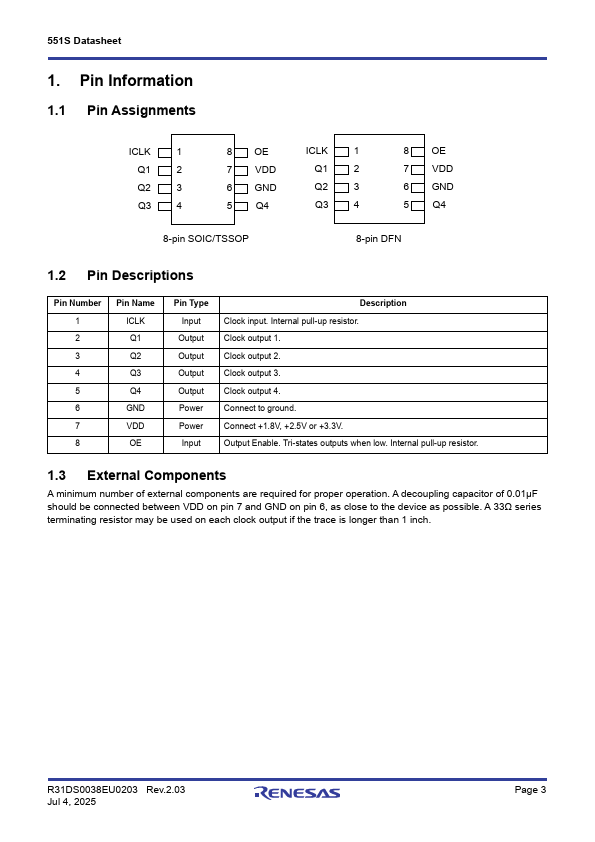

551S-Renesas.pdf
