5P49EE502-166 - Low-Power Clock Generator

Renesas

📥 Download Datasheet

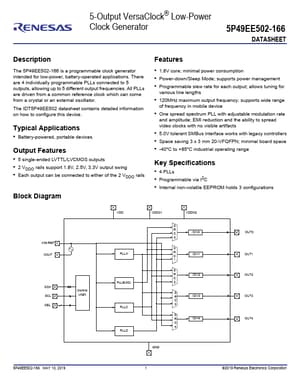

5P49EE502-166 Datasheet Preview — Preview of 5P49EE502-166 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	5P49EE502-166
Manufacturer	Renesas ↗
File Size	709.94 KB
Description	Low-Power Clock Generator
Datasheet	5P49EE502-166-Renesas.pdf

5P49EE502-166 Product details

Description

The 5P49EE502-166 is a programmable clock generator intended for low-power, battery-operated applications. Battery-powered, portable devices Output

Features

5 single-ended LVTTL/LVCMOS outputs.
2 VDDO rails support 1.8V, 2.5V, 3.3V output swing.
Each output can be connected to either of the 2 VDDO rails Block Diagram Features.
1.8V core; minimal power consumption.
Power-down/Sleep Mode; supports power management.
Programmable slew rate for each output; allows tuning for various line lengths.
120MHz maximum output frequency; supports wide range of frequency in mobile device.
On.
