5P49V6968 - Clock Generator

Renesas

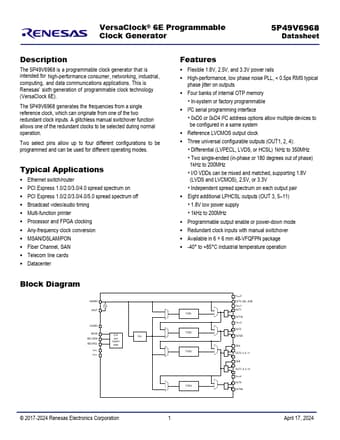

5P49V6968 Datasheet Preview — Preview of 5P49V6968 PDF

Datasheet Details

Part number	5P49V6968
Manufacturer	Renesas ↗
File Size	1.58 MB
Description	Clock Generator
Datasheet	5P49V6968-Renesas.pdf

5P49V6968 Product details

Description

The 5P49V6968 is a programmable clock generator that is intended for high-performance consumer, networking, industrial, computing, and data communications applications.

Features

Flexible 1.8V, 2.5V, and 3.3V power rails.
High-performance, low phase noise PLL, < 0.5ps RMS typical phase jitter on outputs.
Four banks of internal OTP memory.
In-system or factory programmable.
I2C serial programming interface.
0xD0 or 0xD4 I2C address options allow multiple devices to be configured in a same system.
Reference LVCMOS output clock.
Three universal configurable outputs (OUT1, 2, 4):.
Differential (LVPECL, LVDS, or HCSL).
