5PB1104 1.8V to 3.3V High-Performance LVCMOS Clock Buffer

The 5PB11xx is a high-performance LVCMOS clock buffer family of devices. It has an additive phase jitter of 50fs RMS. There are five different fan-out variations available: 1:2 to 1:10. The 5PB11xx supports a synchronous glitch-free output enable (OE) function to eliminate any potential intermediate.

5PB1104 Features

* ▪ High-performance 1:2, 1:4, 1:6, 1:8, 1:10 LVCMOS clock buffer ▪ Very low pin-to-pin skew: < 50ps ▪ Very low additive jitter: < 50fs ▪ Supply voltage: 1.8V to 3.3V ▪ 3.3V tolerant input clock ▪ fMAX = 200MHz ▪ Integrated serial termination for 50Ω channel ▪ Packaged in 8-, 14-, 16-, 20-pin TSSOP an

5PB1102PGG-Renesas.pdf

This datasheet PDF includes multiple part numbers: 5PB1104, 5PB1102PGG. Please refer to the document for exact specifications by model.

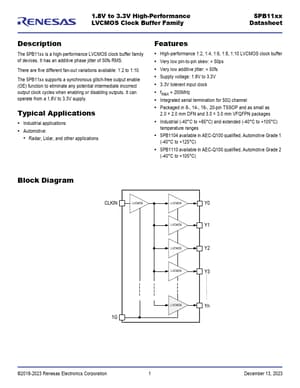

5PB1104 Datasheet Preview Page 2 5PB1104 Datasheet Preview Page 3

Datasheet Details

Part number:

5PB1104, 5PB1102PGG

Manufacturer:

Renesas ↗

File Size:

1.99 MB

Description:

1.8v to 3.3v high-performance lvcmos clock buffer.

Note:

This datasheet PDF includes multiple part numbers: 5PB1104, 5PB1102PGG.
Please refer to the document for exact specifications by model.
