7025S - HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM

Renesas

Datasheet Details

Part number	7025S
Manufacturer	Renesas ↗
File Size	389.97 KB
Description	HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM
Datasheet	7025S-Renesas.pdf

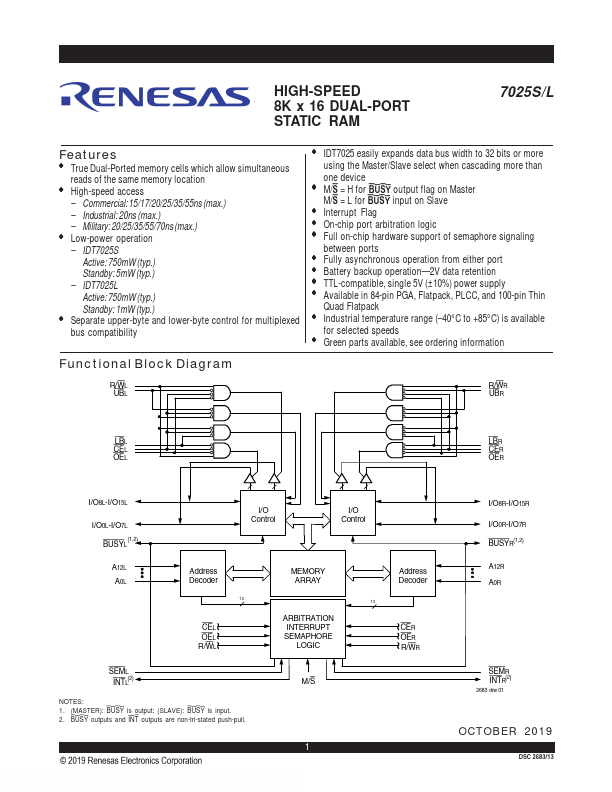

The IDT7025 is a high-speed 8K x 16 Dual-Port Static RAM.

True Dual-Ported memory cells which allow simultaneous reads of the same memory location.
High-speed access.
Commercial: 15/17/20/25/35/55ns (max. ).
Industrial: 20ns (max. ).
Military: 20/25/35/55/70ns (max. ).
Low-power operation.
IDT7025S Active: 750mW (typ. ) Standby: 5mW (typ. ).
IDT7025L Active: 750mW (typ. ) Standby: 1mW (typ. ).
Separate upper-byte and lower-byte control for multiplexed bus compatibility.
IDT7025 easily exp.
