7035L - HIGH-SPEED 8K x 18 DUAL-PORT STATIC RAM

Renesas

📥 Download Datasheet

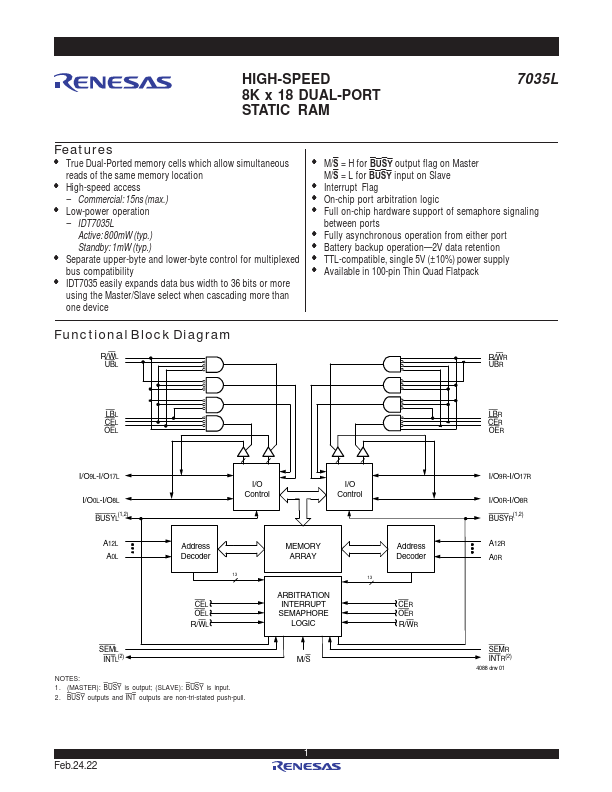

7035L Datasheet Preview — Preview of 7035L PDF

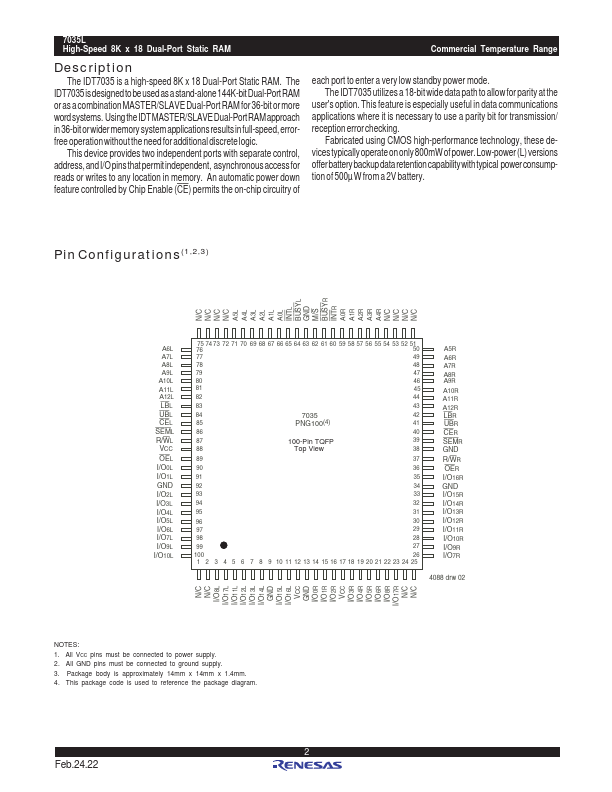

datasheet Preview Page 2

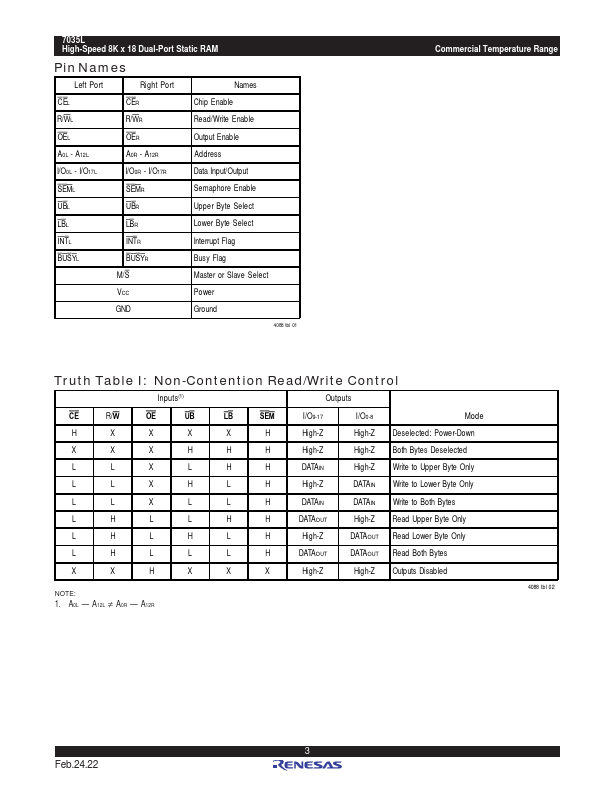

datasheet Preview Page 3

Datasheet Details

Part number	7035L
Manufacturer	Renesas ↗
File Size	231.40 KB
Description	HIGH-SPEED 8K x 18 DUAL-PORT STATIC RAM
Datasheet	7035L-Renesas.pdf

7035L Product details

Description

The IDT7035 is a high-speed 8K x 18 Dual-Port Static RAM.

Features

True Dual-Ported memory cells which allow simultaneous reads of the same memory location.
High-speed access.
Commercial: 15ns (max. ).
Low-power operation.
IDT7035L Active: 800mW (typ. ) Standby: 1mW (typ. ).
Separate upper-byte and lower-byte control for multiplexed bus compatibility.
IDT7035 easily expands data bus width to 36 bits or more using the Master/Slave select when cascading more than one device.
M/S = H for BUSY output flag on Master M/S.
