70T3719 Datasheet - Renesas

70T3719-Renesas.pdf

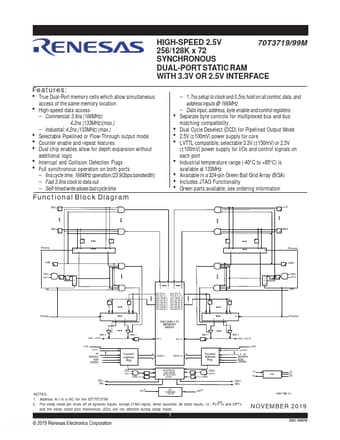

Preview of 70T3719 PDF
70T3719 Datasheet Preview Page 2 70T3719 Datasheet Preview Page 3

Datasheet Details

Part number:

70T3719

Manufacturer:

Renesas ↗

File Size:

590.54 KB

Description:

Dual-port static ram.

70T3719, DUAL-PORT STATIC RAM

The IDT70T3719/99M is a high-speed 256K/128K x 72 bit synchronous Dual-Port RAM.

The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports.

Registers on control, data, and address inputs provide minimal setup and hold times.

The timing latitude pro

70T3719 Features

* True Dual-Port memory cells which allow simultaneous access of the same memory location

* High-speed data access

* Commercial: 3.6ns (166MHz) 4.2ns (133MHz)(max.)

* Industrial: 4.2ns (133MHz) (max.)

* Selectable Pipelined or Flow-Through output mode

* Counter enabl
