70V261L, 70V261S - HIGH-SPEED 3.3V 16K x 16 DUAL-PORT STATIC RAM

Renesas

📥 Download Datasheet

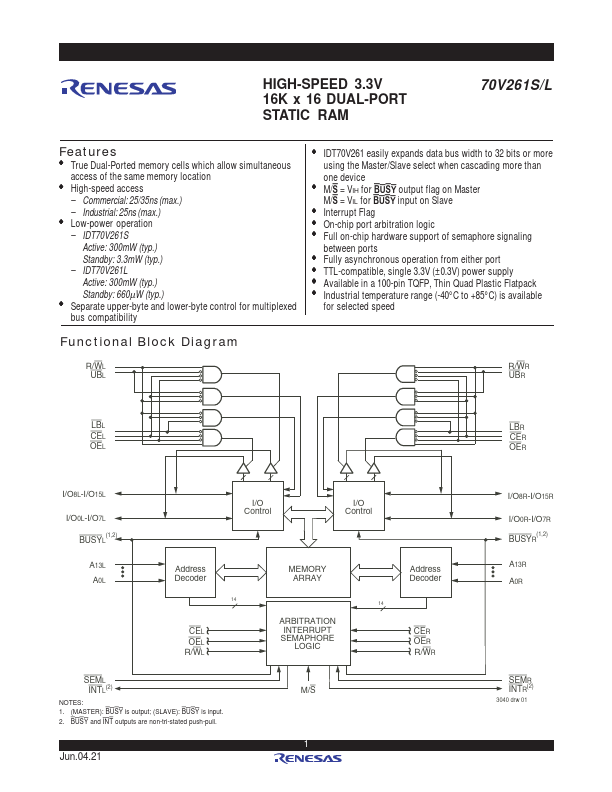

70V261L Datasheet Preview — This datasheet PDF includes multiple part numbers: 70V261L, 70V261S. Please refer to the document for exact specifications by model.

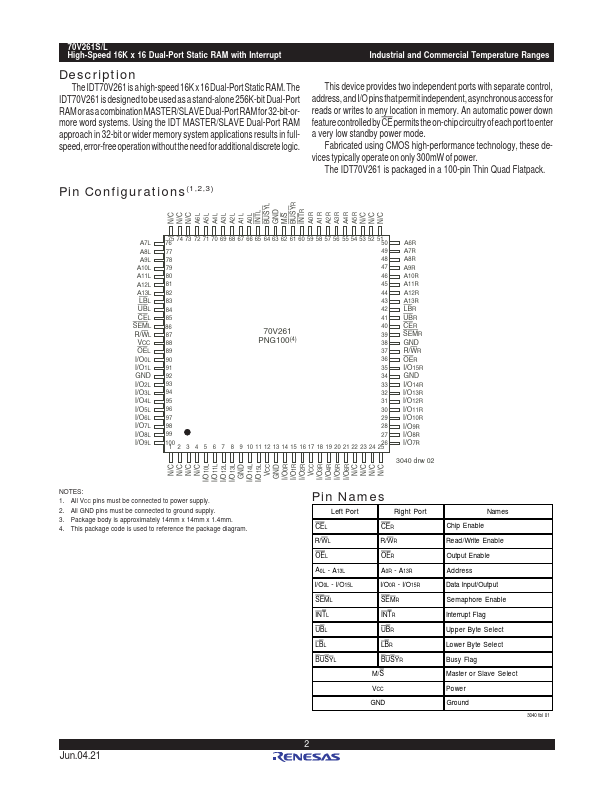

datasheet Preview Page 2

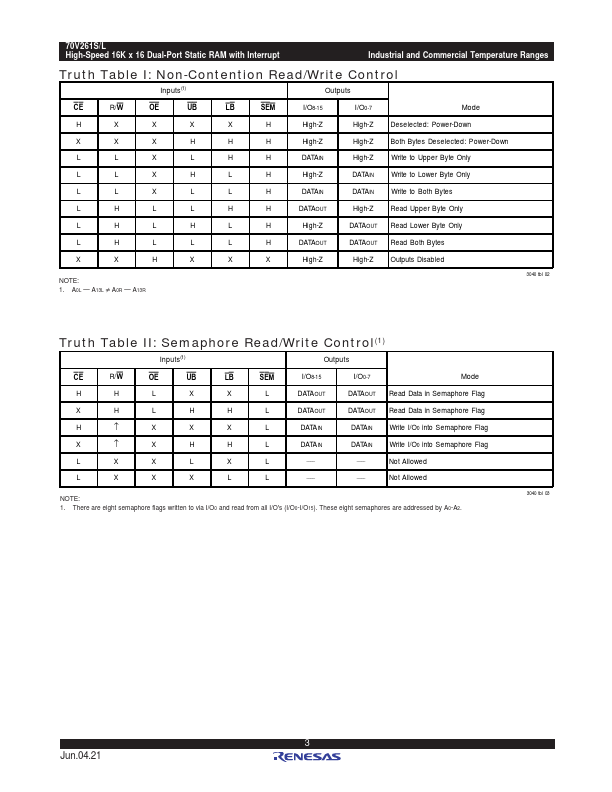

datasheet Preview Page 3

Datasheet Details

Part number	70V261L, 70V261S
Manufacturer	Renesas ↗
File Size	227.52 KB
Description	HIGH-SPEED 3.3V 16K x 16 DUAL-PORT STATIC RAM
Datasheet	70V261S-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: 70V261L, 70V261S. Please refer to the document for exact specifications by model.

70V261L Product details

Description

The IDT70V261 is a high-speed 16K x 16 Dual-Port Static RAM.

Features

True Dual-Ported memory cells which allow simultaneous access of the same memory location.
High-speed access.
Commercial: 25/35ns (max. ).
Industrial: 25ns (max. ).
Low-power operation.
IDT70V261S Active: 300mW (typ. ) Standby: 3.3mW (typ. ).
IDT70V261L Active: 300mW (typ. ) Standby: 660μW (typ. ).
Separate upper-byte and lower-byte control for multiplexed bus compatibility.
IDT70V261 easily expands data bus width to 32 bits or more using.
